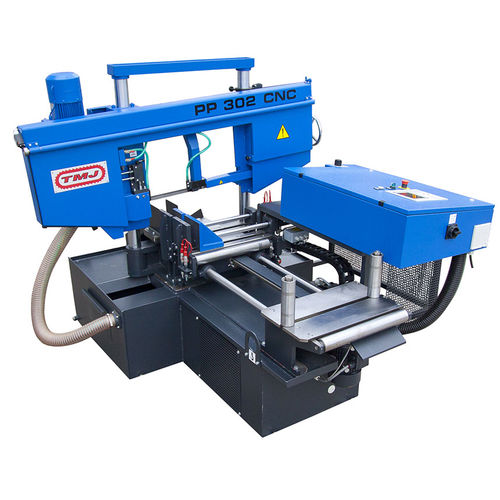

Band saw PP 302

for metalsfully-automaticCNC

Fully automatic electrohydraulic band saw machine for metal dedicated for straight cuts. Two columns, stand and crossbar create a closed frame, which ensures perfect rigidity and therefore accurate and fine cut while using maximal technological conditions. Band saw is controlled by means of microprocessor control system with screen and keyboard to program the functions of band saw. Machine stops in case of number of pieces set is achieved, missing material, saw blade getting broken or failure (with its identification). Band saw is equipped with electronic feeding of material up to length of 600 mm by means of ball screw (arbitrarily repeatable) with step feeding from the rear position of accuracy of ± 0,1 mm. saw blade [mm] 3660 × 27 × 0,9 motor [kW] 2,4 cutting speed [m/min 10–115 weight [kg] 1200 dimensions [mm] 1800 × 2040 × 1650 HYDRAULIC BLADE TENSIONING It enables accurate and easy tensioning of saw blade. Accurate tensioning is important for quality of cut and life time of saw blade. HYDRAULIC BUNDLE CLAMPING It enables clamping of material while cutting of bundle. It ensures reliable clamping by means of hydraulically controlled vertical vice working in a cycle with the whole machine. VARIABLE VICE PRESSURE It enables to regulate power of clamping while cutting of thin wall profiles. It helps to avoid deformation of material being cut and secures an accurate cut. MICRO SPRAY COOLANT SYSTEM It creates oil mist, which is injected into area of cut. It does replace common cooling fluid especially in case of sectional material cutting, where cooling fluid may leak out of the machine.
