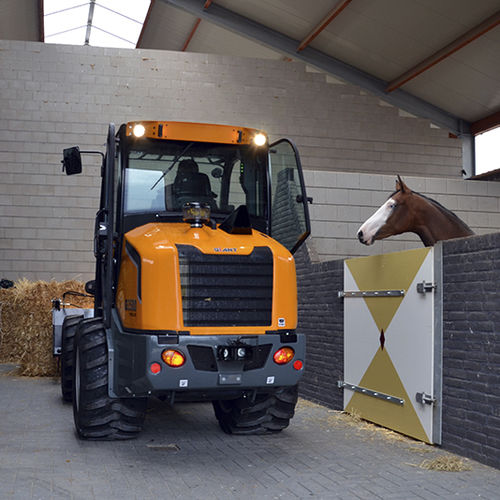

Wheeled loader G3500

articulatedtelescopiccompact

With a lifting height of over 4.3 meters, the G3500 TELE is perfect for performing jobs at height. The compact dimensions ensure that the machines can operate in small spaces and can even be used indoors. The hydrostatic 4-wheel drive with automotive steering and 100% switchable lock on both, 14-tonne axles, prevents the machine from losing grip and gives sufficient traction for smooth movement. The articulated pendulum system gives the G3500 TELE a lot of stability and maneuverability. The system ensures that all four wheels stay on the ground, even when working on uneven terrain. This makes it not only safe to work, but there is also always sufficient traction. Hitch: GIANT Standard (Hydraulically) ROPS / FOPS safetyroof incl. safety doors left and right Double acting hydraulic valve at the front (mechanical) Hydraulic servicebrake on 4 wheels Hose rupture protection Modular Cylinder Set-up (MCS) Luxury sprung seat with safety belt, armrest and extended backrest Main switch Towing hook at the back 1 Counterweight integrated into the bumper Working light on lifting arm Cyclone filter Oil cooler Engine - Kubota V2403-CR-TE5B (4 cylinder), STAGE V Engine power - 66 HP / 48,5 kW Fuel - Diesel Service weight1 - 4,000 kg Lifting capacity - 790 kg / 2,500 kg Tipping load2 - 2,500 kg (with retracted arm) Lifting height2,3 - 4,279 mm
