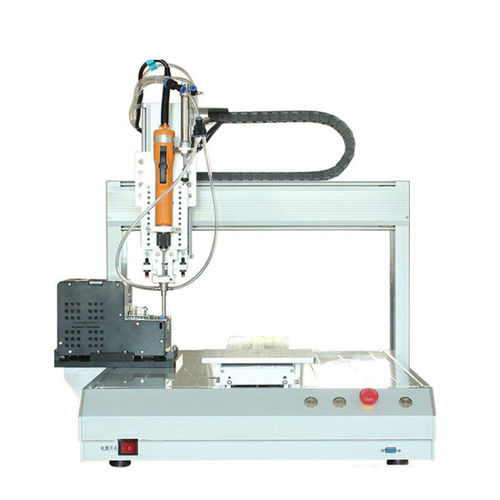

Robotic screwing machine SX-441

Features 1. Screw feeding by presenter. 2. Available for M1-M6 screw. 3. Servo screwdriver to set and display torque for each screw (option). 4. Optional traction visual teaching programming or teach pendant FQA 1. Why is Robotic Screw driving machine? -- To give better in term of quality such as same read out trace torque for each point of production. -- Higher efficiency by reducing manpower at least one to three person. 2 What are the feeding types for the Robotic Screw Driving System? -- We using the vibrator to sort the screw depending on screw type and size. -- Firstly we using the pick and place of the screw presenter. -- Another way is we using air blowing to feed directly to the screwdriver. 3. How to apply the screw to the product? -- Mainly, we have 2 ways to screw the product which is magnetic for ferrous screw and vacuum for all material including ferrous, copper, stainless steel screw. 4. What kind of screws are fit for the air blowing type machine? -- Screw models M1.4~ M4 are fit for air blowing feeding of screw driving machine. -- Screw length must less than 16mm. If more than, the feeder needs to be customized. -- The screw's length must be over 1.2 times of diameter for air blowing feeding type to prevent the screw from turn over inside the feeder's tube. 5. What kind of screws are fit for the screw presenter type machine? -- Screw models M0.8 ~ M4 are fit for Magnetic, vacuum feeding of screw driving machine. -- Machine screws, self-tapping screws, etc.
