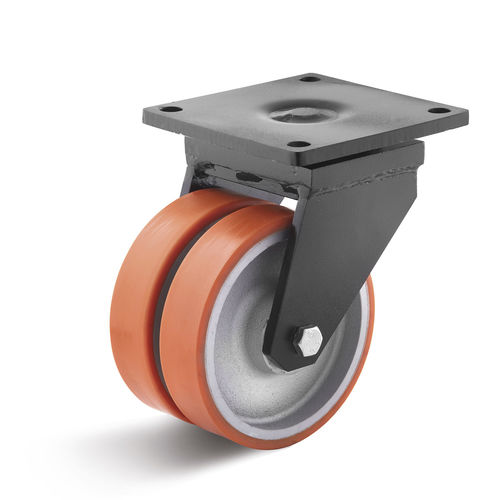

Swivel caster L-HD-PUZG-200-K-3
base plateheavy-dutydouble

swivel caster
swivel caster
swivel caster
Add to favorites
Compare this product


Characteristics

Type
swivel
Mount
base plate
Other characteristics
heavy-duty, double, with grease nipple, polyurethane, galvanised steel
Load capacity

Min.: 500 kg
(1,102 lb)

Max.: 4,000 kg
(8,818 lb)

Wheel diameter

Min.: 125 mm
(4.921 in)

Max.: 300 mm
(11.811 in)

Tread width

Min.: 35 mm
(1.38 in)

Max.: 70 mm
(2.76 in)

Description

Heavy-duty double castor with polyurethane wheel - wheel body made of special grey cast iron with ball bearing - tread made of molded polyurethane, approx. 95° shore A - heavy welded steel construction The strongest Torwegge housing series consist of a welded steel construction for maximum dynamic stresses. The swivel castor housings are equipped with sealed axial rib ball bearing an tapered roller bearing and thus particularly sensitive against surges and beats. The housing head is screwed and secured by a heavy center bolt. The material polyurethane (PU) has a high load capacity with low abrasion. It also features high chemical resistance. These properties make polyurethane suitable for almost any application. In addition, PU offers low rolling resistance. Model article number: 0015681

Catalogs

No catalogs are available for this product.

See all of TORWEGGE GmbH & Co. KG .‘s catalogs

Other TORWEGGE GmbH & Co. KG . products

Heavy-duty castors up to 10,000 kg
