Electromechanical press EXe-F seriesformingassemblycompact
Add to favorites
Compare this product
Characteristics
- Operation
- electromechanical
- Function
- forming, assembly
- Structure
- compact
- Other characteristics
- servo-driven, high-speed, continuous
- Force
5 kN, 10 kN, 30 kN, 60 kN, 100 kN
- Stroke
150 mm (6 in)
- Working speed
300 mm/s, 350 mm/s, 500 mm/s, 550 mm/s, 800 mm/s
- Weight
24 kg, 39 kg, 70 kg, 119 kg, 179 kg (53 lb)
- Overall length
1,033 mm, 1,270 mm, 1,434 mm, 1,572 mm, 1,712 mm (41 in)
Description

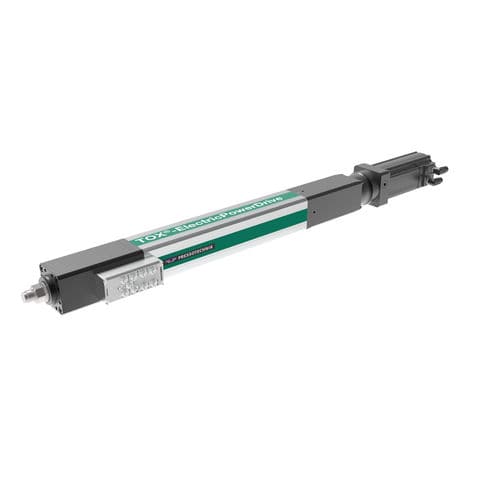

The EXe-F is a high-speed electromechanical servo drive with planetary roller screw spindle. Features of this servo press drive include:
Extremely fast and highly dynamic
Compact flange dimension
Planetary roller threaded spindle
Integrated force measurement
Designed for continuous operation
Highly precise force measurements
Force range: 5 to 100 kN
Stroke lengths: 150/300 mm
Speed: 0 to 800 mm/s
Protection class: IP 54
Accuracies:
Force: ≤ +/- 0.5%
Distance repeat accuracy: +/-0.01 mm
