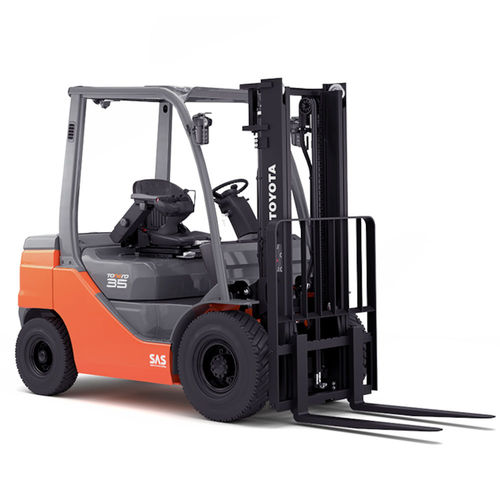

Diesel forklift Tonero

LPGride-onhandling

Characteristics

Motor type

diesel, LPG

Operator

ride-on

Applications

handling, industrial, outdoor

Other characteristics

4-wheel, counterbalanced, heavy-duty, low-noise

Carrying capacity

3,500 kg (7,716.2 lb)

Lifting height

7 m (22'11")

Overall width

1,290 mm (50.8 in)

Overall length

3,850 mm (151.6 in)

Load center distance

500 mm (19.7 in)

Weight without load

4,820 kg (10,626.3 lb)

Axle loading with maximum load front

7,250 kg, 7,280 kg (15,983.5 lb)

Axle loading with maximum load rear

1,070 kg, 1,110 kg (2,358.9 lb)

Axle loading without load front

1,690 kg, 1,720 kg (3,725.8 lb)

Axle loading without load rear

3,130 kg, 3,170 kg (6,900.5 lb)

Track width front

1,060 mm (41.7 in)

Track width rear

965 mm (38 in)

Height of mast when lowered

2,115 mm (83.3 in)

Free lift

135 mm (5.3 in)

Overall height with mast raised

4,260 mm (167.7 in)

Height to top of overhead guard

2,180 mm (85.8 in)

Seat height

1,120 mm (44.1 in)

Tow couplig height

335 mm (13.2 in)

Length to fork face

2,850 mm (112.2 in)

Fork carriage width

1,070 mm (42.1 in)

Ground clearance under mast with load

130 mm (5.1 in)

Ground clearance at center of wheelbase with load

190 mm (7.5 in)

Turning circle radius

2,490 mm (98 in)

Travel speed

19 km/h, 19.5 km/h (11.8 mph)

Lifting speed

0.4 m/s, 0.5 m/s (1.3 ft/s)

Vitesse d'abaissement

0.5 m/s (1.6 ft/s)

Rated drawbar pull

10,500 N, 10,600 N, 17,000 N, 18,500 N

Gradeability

18 %, 19 %, 20 %, 21 %

Rated output

41 kW, 42 kW (55.7 hp)

Rated speed

2,200 rpm, 2,570 rpm (13,823 rad.min-1)

Cubic capacity

Max.: 2,237 m³ (78,998.9 ft³)

Min.: 3 m³ (105.9 ft³)

Maximum operating pressure

147 bar (2,132.1 psi)

Oil flow

Max.: 80 l/min (21.1 us gal/min)

Min.: 65 l/min (17.2 us gal/min)

Noise level

77 dB
