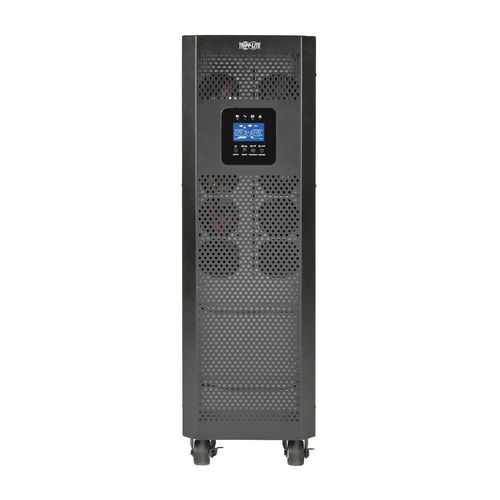

On-line UPS SVT10KX
ACthree-phasebattery

on-line UPS
on-line UPS
on-line UPS
on-line UPS
on-line UPS
on-line UPS
Add to favorites
Compare this product

Characteristics

Type
on-line
Electrical characteristics
three-phase, AC
Applications
industrial, battery
Other characteristics
Eco mode, emergency, automatic
Input voltage

Max.: 415 V

Min.: 220 V

Output voltage

Max.: 415 V

Min.: 220 V

Output power kVA

9 kW (12.24 hp)

Description

SmartOnline SVTX Series 3-Phase 380/400/415V 10kVA 9kW On-Line Double-Conversion UPS, Tower, Extended Run, SNMP Option Economical, entry-level 3-phase UPS system protects connected mission-critical equipment against damage, downtime and data loss due to blackouts, brownouts, power surges and line noise. On-line double-conversion topology with IGBT technology Voltage and Frequency Independent (VFI) operation Automatic and Manual Bypass for enhanced reliability Optional ECO mode for high-efficiency operation Internal batteries and expandable runtime options 2-year limited warranty Overview The SVT10KX SmartOnline® SVTX Series 3-Phase 380/400/415V 10kVA 9kW On-Line Double-Conversion UPS with IGBT technology provides battery backup and AC power protection against power disturbances that can damage electronics or destroy data. It’s recommended for critical IT or corporate infrastructure, telecom, LAN/WAN, security and emergency, financial and light industrial applications. The SVT10KX’s VFI design allows continuous operation at any supported voltage at either 50 or 60 Hz. Zero transfer time to battery mode ensures no disruption to the attached loads. Automatic and Manual Bypass keeps connected equipment powered even during overloads and UPS maintenance.
