IEC connector power cord P050-2P5M-EU

with plug

Product Overview
Tripp Lite P050-2P5M-EU computer power cord that connects equipment with an IEC-320-C19 inlet to Schuko (CEE 7/7) AC outlets. Built with a VDE-compliant H05VV-F PVC jacket and 2.5 m length for flexible placement in racks, cabinets and workstations.

Key Features

• Connects servers, PCs or network equipment with a C19/C20 inlet to PDUs or UPS units fitted with Schuko outlets.
• 2.5 m length provides cable reach for rack and cabinet installations.
• Direct replacement cable for worn or missing power leads.
• H05VV-F PVC jacket meets VDE requirements for European IT environments.

Details

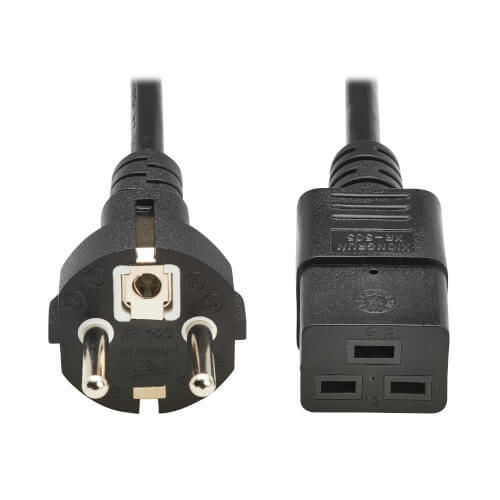

The cable terminates with a CEE 7/7 Schuko plug on the mains end and an IEC-320-C19 connector on the equipment end. Jacket material: enhanced PVC (H05VV-F). Standards: VDE, CE and UKCA, suitable for data-center and rack-mount use. Recommended for powering computers, servers, storage devices and other network hardware in European installations.

Package Includes

• P050-2P5M-EU C19 to Schuko EU Power Cable, 2.5 m (8.2 ft.), Black

Certifications & Compliance

• CE (Europe)
• REACH
• RoHS
• UKCA

Technical specifications

• UPC Code: 037332281234
• Product Type: Computer Power Cord
• Device Compatibility: Computer
• Country/Region: Europe
• Maximum Input Amps: 16 A
• Voltage Compatibility (VAC): 250 VAC
• Side A - Connector 1: CEE 7/7 Schuko plug
• Side B - Connector 1: IEC-320-C19
• Connector Style: Straight
• Color: Black
• Cable Jacket Material: PVC
• Power Cord Jacket Type: H05VV-F
• Cable Outer Diameter (OD): 7.0 mm
• Number of Conductors: 3
• Conductor Gauge: 32/0.20AS
• Wire Gauge (mm²): 1 mm²
• Cable Length: 2.50 m
• Unit Weight: 0.28 kg
• Shipping Weight: 0.29 kg
• Shipping Dimensions (H x W x D): 25.40 x 20.29 x 1.27 cm
• Operating Temperature Range: 5° to 158°F (-15° to 70°C)
• Storage Temperature Range: 5° to 140°F (-15° to 60°C)
• Operating Humidity Range: 20% to 80% RH, non-condensing
• Product Compliance: CE; REACH; RoHS; UKCA
• Product Warranty Period (Worldwide): Lifetime limited warranty
