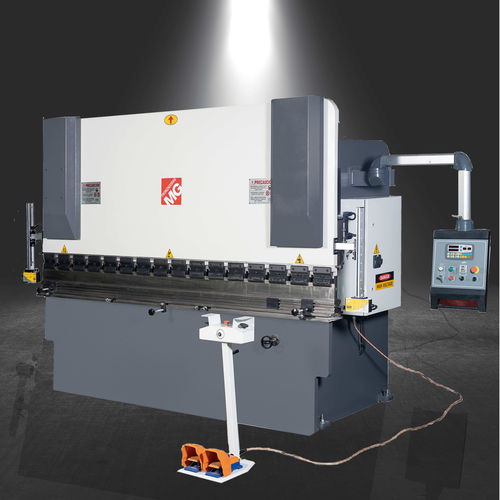

Hydraulic press brake WC67Y 200/3200

horizontal

WC67Y 200/3200 Hydraulic press brake - Steel structure to give rigidity and stability, consolidated with special treatment against vibrations and temperature changes. - Anti-torsion bar. - Integrated hydraulic transmission system, equipped with several tanks. - Electrically adjustable rear stop with fine adjustment and digital display. - Mechanical adjustment of the tranche independently of the cylinder to allow the superior closing. - System of descending work of fixed table and mobile upper trancha. - Motorized penetration stop with Numeric Control that controls the 2 preselector stops of the rear stop and the vertical penetration stop with 99 programs and 20 cycles in each program. - Top with sliding fingers on high precision skates. - Bimanual control, with emergency stop. - Gooseneck on all models. OPTIONS: *AKAS - SECURITY SYSTEM * DEPENDING ON STOCK, THE MACHINE CAN BE IN BLUE OR GRAY COLORS PACKAGING AND DIMENSIONS: 3300x1715x2765 mm (10900 Kg) Standard packaging Folding force200 Tn Folding length3200 mm Distance between studs2550 mm Swan neck320 mm Carrera200 mm Descent speed70 mm / sec Working speed7.5 mm / sec Speed return60 mm / sec Board table distance435 mm / sec Motor20.00 Hp
