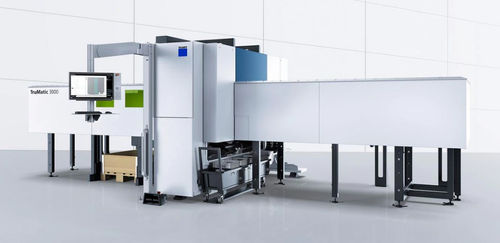

Laser cutting machine TruMatic 3000

for metalsheet metalCNC

Overview The TruMatic 3000 fiber is a punch‑laser combination machine that integrates punching, laser cutting, forming and tapping in one unit. It combines a fully electric punching drive (DeltaDrive) with the TruFiber solid‑state laser to deliver high productivity with reduced energy consumption and a compact footprint.

Key benefits

• Multi‑process on one platform: punching, laser cutting, forming and tapping without reclamping.
• Series production quality: descending die and brush or ball tables ensure scratch‑free handling of sensitive parts.
• Smooth automation: integrated part removal flaps, sorting options and modular automations enable continuous multi‑shift production.
• Energy efficiency: DeltaDrive combined with TruFiber reduces system power input and CO2 emissions versus conventional punch‑laser machines.

Applications

• Combined operations: laser‑cut contours with punched features (embossing, beading, step forming, marking) in a single process.
• Processing of reflective materials: TruFiber resists back‑reflections and supports copper, brass, titanium and other non‑ferrous metals.
• High‑volume small parts production with integrated small‑part ejection and automated large‑part unloading.

Automation and equipment highlights

• Automation options: SheetMaster (loading/unloading/palletizing), SheetMaster Compact, SortMaster Compact, GripMaster, ToolMaster Linear and buffer/sorting systems.
• Part handling: integrated removal flaps, chutes and intermediate buffers; automatic sorting up to 180 x 180 mm and large part unloading via flap up to 400 x 600 mm.
• Quality features: descending die, brush or ball tables, integrated flattening to compensate forming distortions.
• Process reliability: universal cutting unit for solid‑state laser, Smart Punch Monitoring for early detection of punch failure.
• Operation & software: Touchpoint HMI, MobileControl app, TruTops Boost for programming and planning.

Notes Available in two main configurations: standard and DeltaDrive Performance package for higher punch force/speed. The DeltaDrive + TruFiber combination can reduce system energy consumption by approximately 65% compared with conventional punch‑laser solutions (dependent on configuration).

Technical specifications

• Model: TruMatic 3000 fiber
• Drive concept: fully electric punching drive (DeltaDrive)
• Laser: TruFiber solid‑state laser (resistant to back‑reflections)
• Versions: Standard and DeltaDrive Performance package
• Punching force / speed (standard): 165 kN, ~650 strokes/min
• Punching force / speed (Performance): 180 kN, ~800 strokes/min
• Energy efficiency: DeltaDrive + TruFiber ≈ 65% lower system power input vs conventional
• Part sorting capacity: automatic sorting up to 180 x 180 mm
• Large part removal: automated unloading via flap up to 400 x 600 mm
• Material range: steels, stainless steels, reflective non‑ferrous metals (copper, brass, titanium)
• Automation compatibility: SheetMaster, SortMaster Compact, GripMaster, ToolMaster
• Process features: integrated flattening, small part ejection, chip conveyor
• Operation & software: Touchpoint HMI, TruTops Boost, MobileControl app
