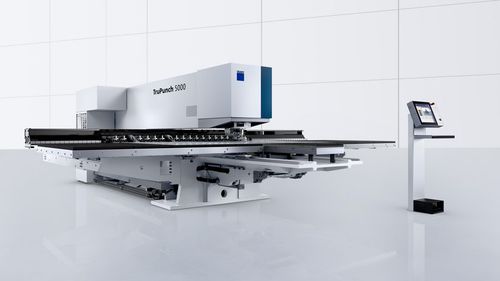

CNC punching machine TruPunch 5000 series

hydraulicsheet metalpunching

Overview The TruPunch 5000 is a hydraulic CNC punching machine for high-rate sheet metal punching, marking and forming. Backlash-free drives and a high-speed C-axis enable fast tapping and productive processing of complex contours. Hydraulic drive supports punching up to 1,600 strokes per minute and marking up to 2,800 strokes per minute. Automation modules and Smart Functions increase process reliability and throughput.

Performance

• Punching up to 1,600 strokes/min (medium format specification).
• Marking up to 2,800 strokes/min.
• Maximum sheet thickness: 8 mm; maximum punching force: 220 kN.
• MultiTool change time: 0.3 s; ToolMaster Linear supports high tool capacity.

Key benefits

• Active (descending) die for scratch-free parts and improved quality.
• Retractable clamps for gentle handling and precision.
• Options for skeleton-free processing to save material.
• Modular automation for loading, unloading, sorting and tool handling (SheetMaster, SortMaster, DisposeMaster, ToolMaster Linear).
• Smart functions: Smart Punch Monitoring, sheet format recognition, Smart Load, Smart Unload.

Applications Suitable for high-volume stamping, fine marking, forming and deburring of sheet metal parts using size 5 tools (extrusion, louver, card guide, cup forming). Integrated flattening reduces or eliminates post-processing.

Quality & process reliability

• Active die reduces scratching and part catching.
• Smart Punch Monitoring detects broken punches early.
• Sheet format recognition and Smart Load/Unload increase handling reliability.
• Machine supports precise part removal and sorting to protect surfaces.

Automation & tool handling Individual automation solutions are expandable step-by-step. SheetMaster handles loading/unloading/unstacking; SortMaster Box/Linear sorts finished parts; DisposeMaster removes skeletons. ToolMaster Linear enables fast tool changes and high tool capacity (up to 90 tools); multiTool change time 0.3 s.

Multimedia Product and option videos and downloadable technical documents are available to illustrate functions such as active die, sheet format recognition and flattening.

Technical data (selection) Width: 7610 mm (large) / 6540 mm (medium)
Depth: 8171 mm (large) / 7395 mm (medium)
Height: 2072 mm (both)
Punching (E = 1 mm): 1350 1/min (large) / 1600 1/min (medium)
Marking: 3000 1/min (both)
Punching X axis: 3050 mm (large) / 2500 mm (medium)
Punching Y axis: 1550 mm (large) / 1250 mm (medium)
Max sheet thickness: 8 mm (both)
Max workpiece weight: 280 kg (large) / 200 kg (medium)
Max punching force: 220 kN (both)
Tools/clamps: 21 / 4 (large) ; 18 / 3 (medium)
Part removal max (flap): 500 x 500 mm
Average power input in production: 9.5 kW

Technical specifications

• Model: TruPunch 5000
• Manufacturer: TRUMPF
• Punching speed: up to 1,600 strokes/min (medium specification)
• Marking speed: up to 2,800 strokes/min
• Max sheet thickness: 8 mm
• Max punching force: 220 kN
• Max workpiece weight: up to 280 kg (large)
• Punching range X (medium): 2500 mm; Y (medium): 1250 mm
• MultiTool change time: 0.3 s
• Tool capacity: ToolMaster Linear up to 90 tools
• Average power input in production: 9.5 kW
