Low-temperature coolant LFP®

for low-temperature environmentsanti-freeze

Overview

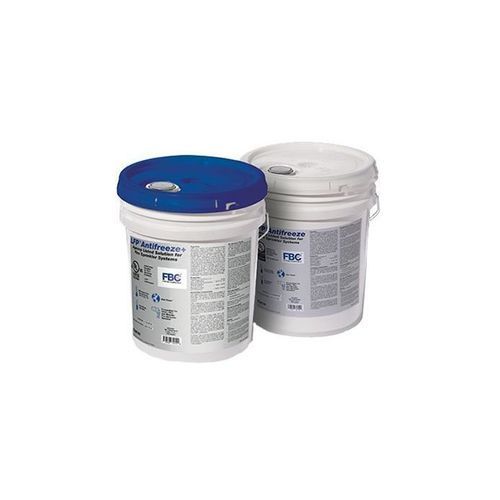

LFP® Antifreeze and Antifreeze+ are UL Listed antifreeze solutions for wet sprinkler systems exposed to freezing temperatures. Listed for system volumes up to 500 gallons (1893 liters), they are compatible with most sprinkler materials, including CPVC (BlazeMaster®), and provide an alternative to heat tracing or dry systems for freeze protection.

Key Information

• Available in totes, drums & pails
• LFP® Antifreeze: minimum use −10°F (see TFP1680 for technical and listing details)
• LFP® Antifreeze+: minimum use −25°F (see TFP1682 for technical and listing details)

Features

• Industry’s first UL Listed antifreeze now listed for systems up to 500 gallons (1893 liters)
• FBC™ System Compatible for use with BlazeMaster® CPVC pipe and fittings
• Meets NFPA 13, 13R, 13D and 25 requirements for use of listed antifreeze
• UL and cUL Listed and Certified

Benefits

• Designed for wet sprinkler systems subject to freezing temperatures
• Eliminates delivery delays associated with dry pipe systems by discharging the antifreeze mixture immediately upon activation
• Backed by Tyco's long history in fire-protection products

How it works
When a sprinkler activates, the antifreeze mixture is discharged first and is immediately followed by water from the supply, avoiding the air-release delay typical of dry-pipe systems.

Technical specifications

• Packaging: totes, drums & pails
• Listed for system volumes up to 500 gallons (1893 liters)
• LFP® Antifreeze minimum use temperature: −23.3°C (−10°F)
• LFP® Antifreeze+ minimum use temperature: −32°C (−25°F)
• Compatible with most sprinkler system materials, including CPVC (BlazeMaster®)
• Meets NFPA 13, 13R, 13D and 25 requirements for listed antifreeze use
• UL and cUL Listed / Certified
