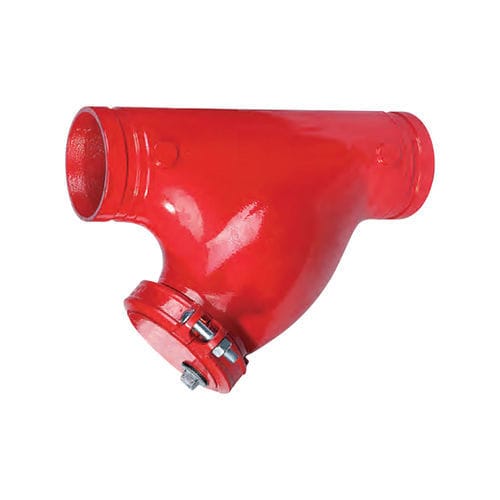

Stainless steel strainer 760P

Yfor pumps

Overview
Provide economical strainer protection for piping equipment such as pumps, meters, valves, compressors, traps and similar equipment, keeping systems free from debris and foreign matter. Featuring a 304 stainless steel screen secured with an end cap and a mechanical coupling, cleaning and maintenance is simple — remove the coupling for easy access. Suitable for both vertical and horizontal installation. Rated for working pressures up to 300 psi and temperatures from 32°F to 200°F.

Key details (table)
Sizes: DN50 to DN300 (2 in to 12 in)
Regional Availability: Available only in EMEA and APAC regions
Listings and Approvals: UL and C-UL Listed

Features

• UL and C-UL Listed
• Temperature rating: 32° to 200°F (0° to 100°C)
• Available in sizes 2" (DN50) to 12" (DN300)
• Can be installed horizontally or vertically

Benefits

• Trusted Solutions — Grinnell fittings, couplings and accessories provide dependable solutions
• Broad Portfolio — Part of the Johnson Controls / Grinnell product offering for mechanical and fire protection applications
• Industry-Leading Warranty — Backed by Johnson Controls warranty terms

Technical specifications

• Model: 760P (Figure 760P Y strainer)
• Screen material: 304 stainless steel
• Screen secured with an end cap and mechanical coupling for easy removal
• Installation orientation: vertical or horizontal
• Sizes: DN50 to DN300 (2 in to 12 in)
• Pressure rating: 20 bar (300 psi)
• Temperature rating: 32°F to 200°F (0°C to 100°C)
• Regional availability: Available only in EMEA and APAC regions
• Listings and approvals: UL and C-UL Listed
