Hose crimping machine UA 4

hose crimping machine
hose crimping machine
hose crimping machine
hose crimping machine
hose crimping machine
hose crimping machine
hose crimping machine
Add to favorites
Compare this product


Product handled
for hoses
Operational mode
Drive type
Crimping force

1,350 kN

Crimping capacity

57 mm (2.2 in)

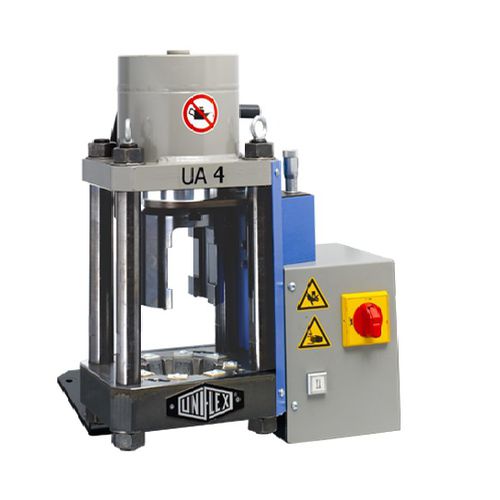

The powerful and affordable UA 4 service press with its wide range of compressible nominal sizes (up to 1¼ inch, even two-piece 4SP fittings) offers maximum flexibility. The open, horizontally displaceable pressure plunger facilitates pressing even short 90° fittings with long bends. The 1-phase version of the standard drive unit makes the UA 4 suitable for use worldwide. Of course, this UNIFLEX press also operates with the proven lubrication-free slide bearing technology. Optimal accessibility Open plunger for easy pressing even of 90° fittings Horizontally movable plunger for good accessibility Split press jaw set for easy and quick changeover Powerful pressing tool Allows crimping of hydraulic hoses with 1½ inch one-piece fittings and 1¼ inch two-piece 4SP fittings Compact design Finds place in any workshop Plain bearing technology Lubricant-free – for more cleanliness and longer machine life Maximum productivity, with extremely low operating costs No contamination of the hose line with grease Ideal also for the food and pharmaceutical industry Reduces press force loss by up to 20% Consistenly accurate crimp force
