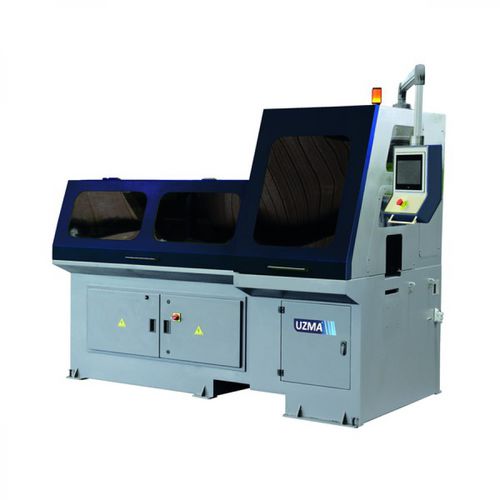

Circular sawing machine UDK Line

for metalsfully-automaticvertical

UDK Line - Fully Automatic Servo Mitre Circular Sawing Machine "• Fully automatic Mitre Pipe Cutting machine • Servo material feeding system • Servo vertical cutting system • Servo Saw Head rotating system (± 45°) • Pneumatic clamping system • Nolinear vertical cutting system for cutting the tubes and solid bars to decrease the cutting time and for the long blade life . In this system vertical cutting speed is changing while cutting the material. • 200 programs to save the all parameters for cutting again the same material. • PLC controlled touch screen panel, • 20 rpm to 100 rpm blade speed by invertor, • 1.200 mm feeding length. • Over 1.200 mm multiply feeding, • 4 different cutting length adjustment in one material • High performance gear box designed in accordance with continuous working conditions, • Cutting head with vertical movement having linear guide system, • Backlash eliminating device prolongs the life of saw blade • Coolant tank with box to collect chips and electric pump for blade lubrication and cooling, • Light warning system activated following the end of the material and the reach of the required cutting quantity
