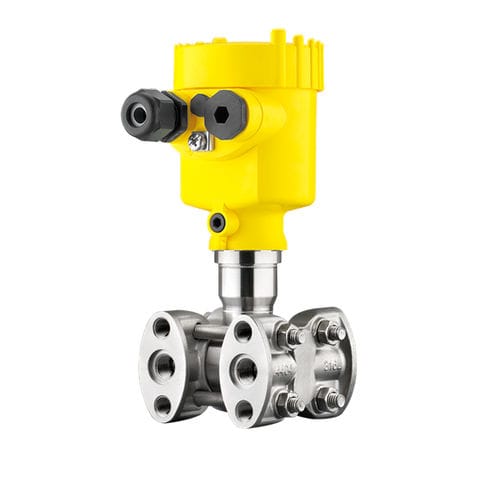

Differential pressure transmitter VEGADIF 85
absolutemembrane4-20 mA

differential pressure transmitter
differential pressure transmitter
Add to favorites
Compare this product


Characteristics

Pressure type
differential, absolute
Technology
membrane
Output
4-20 mA, HART, Profibus
Fluid
for gas, for liquids
Material
stainless steel
Protection level
IP67, IP68, IP66
Other characteristics
precision, with aluminum housing
Applications
process
Process temperature

Min.: -40 °C (-40 °F)

Max.: 80 °C (176 °F)

Pressure range

Min.: 0 bar (0 psi)

Max.: 16 bar (232.06 psi)

Description

Application area For applications with liquids in small containers under simple process conditions. Possible applications can be found in almost all industrial sectors. The VEGADIF 85 is a universal differential pressure transmitter for measurement of liquids, gases and vapours. Typical application areas are level measurement in pressurized vessels as well as flow measurement in combination with effective pressure transmitters. Further applications are pressure monitoring on filters as well as density and interface measurements. Your benefit High reliability through integrated overload diaphragm Measurement of very low differential pressures through high precision measured value detection Multivariable sensor through integrated measurement of the absolute pressure
