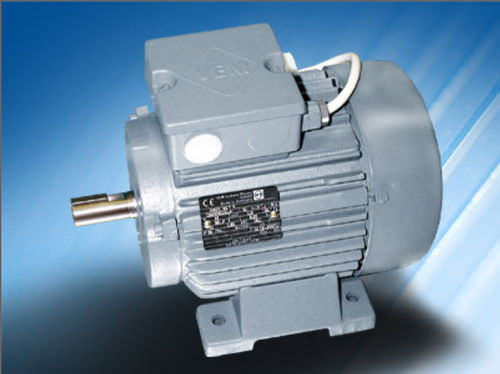

AC motor EB, ED series
single-phaseasynchronousIP55

AC motor
AC motor
AC motor
Add to favorites
Compare this product


Characteristics

AC/DC
AC, single-phase
Type
asynchronous
Protection class
IP55, IP65
Other characteristics
with start capacitor, for pumps
Torque

0.4 Nm (0.295 ft.lb)

Power

Min.: 0.12 kW (0.163 hp)

Max.: 2.2 kW (2.991 hp)

Rotational speed

1,500 rpm, 3,000 rpm (9,424.78 rad.min-1)

Description

Single-phase motors are double-strand asynchronous motors manufactured with a gray cast iron housing and of the same mechanical design layout as the rugged IEC standardized motor series. These motors are thus available in a wide range of variants, and can be operated on the single-phase alternating voltage network. The following variants are available: EB21R / EB20R type series Single-phase asynchronous motors with an operating capacitor The starting torque of approx. 0.4 MN is adequate for most cases of operation (such as fan drives, for example) EB21RW / EB20RW type series Single-phase asynchronous motors with an operating capacitor and a resistance rotor Here, as compared to the EB21R / EB20R type series, the relative Starting torque MA/ MN is increased to about double the value (for use as a concrete mixer drive, for example) ED21R / ED20R type series Single-phase asynchronous motors with an operating capacitor and a resistance rotor starting capacitor This modification combines the benefits of the motors with an operating capacitor (high output and level of efficiency) with the benefits of the starting capacitor motors (high starting torque) and is thus also suited for use with drives for larger resistive torques (such as pump start-up versus delivery pressure, compressors, lifts). The starting capacitor is deactivated via an electronic cut-out device.
