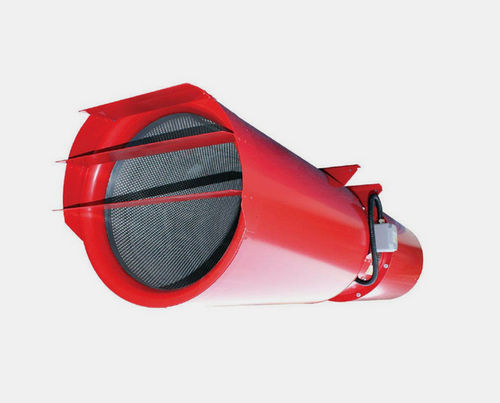

IP55 fan VAX-JR4

reversiblesoundproofaxial

Overview
The VAX-JR4 reversible axial jet fan is designed for car park ventilation and smoke control. Installed in series and/or parallel, these fans activate and direct airflow to convey harmful gases and smoke toward main extract fans, ensuring safe evacuation and facilitating fire-fighter access. Unidirectional and reversible versions provide flexibility for system layout.

Features and Benefits

• Silencers on both sides provide laminar airflow and reduce noise levels.
• Reversible models include deflectors on both sides to redirect flow.
• Fire performance tested and certified at 400°C for 2 hours in accordance with EN 12101-3.
• Two-speed motors with IP55 protection class and H-class insulation suitable for industrial environments.

Technical specifications

• Application: Car park ventilation and smoke extraction.
• Installation: Placed in series and/or parallel to cover the parking area.
• Function: Directs harmful gases and smoke toward main extract fans to enable safe evacuation and fire-fighter intervention.
• Variants: Unidirectional and reversible versions for design flexibility.
• Acoustic: Silencers on both sides for laminar flow and noise reduction.
• Reversible units: Equipped with deflectors on both sides.
• Fire rating: Tested and certified at 400°C for 2 hours (EN 12101-3).
• Motor: Two-speed motors, IP55 protection class, H-class insulation.
