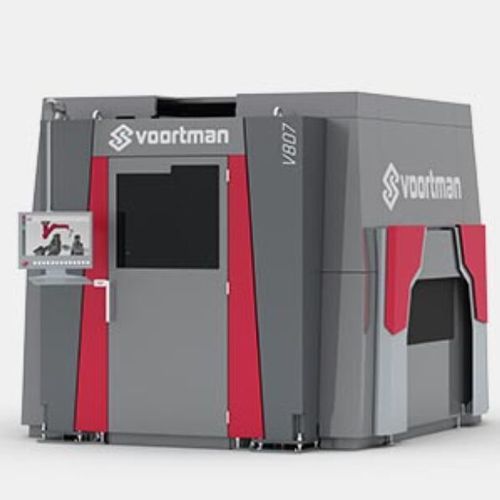

Multi-function cutting machine V807
plasmaoxy-fuelfor metal

multi-function cutting machine
multi-function cutting machine
multi-function cutting machine
multi-function cutting machine
multi-function cutting machine
multi-function cutting machine
multi-function cutting machine
multi-function cutting machine
multi-function cutting machine
multi-function cutting machine
multi-function cutting machine
multi-function cutting machine
multi-function cutting machine
multi-function cutting machine
multi-function cutting machine
multi-function cutting machine
Add to favorites
Compare this product


Characteristics

Technology
plasma, oxy-fuel
Material
for metal
Product handled
profile
Associated function
multi-function
Workpiece loading
with automated loading
Configuration
6-axis
Other characteristics
completely automated, robotic
Y travel

1,050 mm
(41 in)

Z travel

460 mm
(18 in)

Cutting speed

11.6 m/s
(38.058 ft/s)

Overall length

3,110 mm
(122 in)

Overall width

3,710 mm
(146 in)

Height

2,680 mm
(106 in)

Weight

8,650 kg
(19,069.99 lb)

Description

A DO-IT-ALL MACHINE Copes, bolt holes, slots, notches, bevels, weld preparation and layout marking - The Voortman V807 robotic thermal profile cutting system can process it all in one pass with the ability to reach all four sides of the material with exceptional speed and accuracy. The V807 combines all these functions for an impressive economic advantage over dedicated drilling, milling, sawing, punching, shearing and layout marking systems. Combining these processes in a “do-it-all machine” provides a quicker ROI with less floor space. PROCESS ANY SHAPE The V807 robotic profile processor is capable of processing nearly any kind of shape that needs to be produced. Rat holes, seismic structural design connections (like slotted web and “dog bone” cuts), copes at the start or end of a product, block outs, holes in every size and shape, weld preparations and marking on all 4 sides are just some examples of possible cuts the V807’s robot can process thermally. ERROR FREE MEANS EASY ASSEMBLY Keep your workflow free from re-work, time lags, and on-the-spot manual adjustments. Ready-to-assemble products will save you a lot of time and hassle and your pre-calculated costs remain intact. In addition to a perfect fit, we also want you to be able to meet your standards. Our goal is achieved: To provide you with an error-free assembly where all your end products meet their quality standards. An independent testing institute has successfully subjected our cutting robot to various tests. Our V807 passed with flying colors on all of these topics:
