Bag conversion line SACOTEX

Product overview

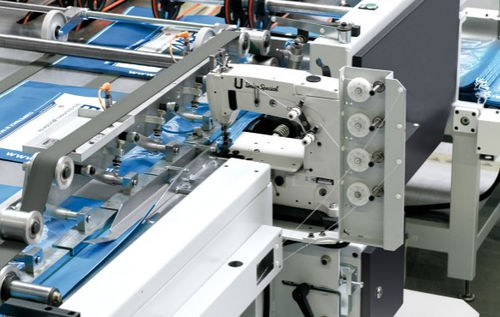

The SACOTEX automatic raffia bag conversion line produces bottom-sewn tubular bags from coated or uncoated woven fabric. The line combines a compact, operator-oriented design with flexible integration options for a range of raffia bag applications. A high-speed overlock-stitch sewing head provides an efficient continuous sewing process.

Key advantages

• Designed for tubular bottom-sewn raffia bags from coated or uncoated fabric
• Operator-friendly, robust mechanical layout
• High-speed overlock-stitch sewing head for continuous production
• Adjustable working width and cutting length for multiple bag formats

Technical data

• Unwinding roll diameter: 1,500 mm
• Working width: 300 - 850 mm
• Cutting length: 500 - 1,400 mm
• Maximum stitch length: 8 mm
• Capacity (coated/uncoated, with/without gusset): up to 2,700 bags/h (depending on bag design, fabric weight and coating thickness)

Options

• Inline gusseting device GUSSETTEX
• Hole-punching unit for handle grip
