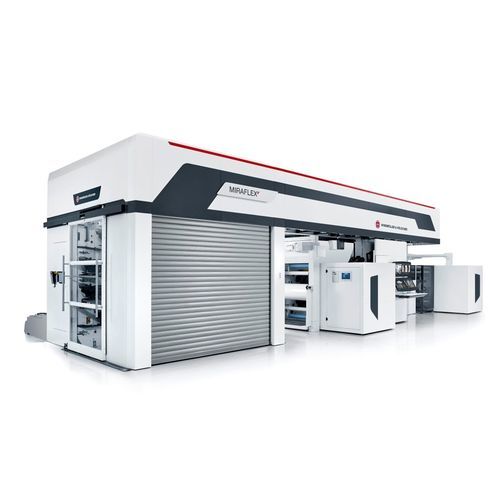

Paper printing machine MIRAFLEX II

8-colorten-color

Product information
The MIRAFLEX II is a flexographic roll-to-roll press engineered for flexible packaging production. It delivers productive and reliable printing across film, paper and laminate substrates.

• Optimized print deck design, drying capacity and web handling
• Integrated modules for fast, low-waste setup and job changes
• Fully integrated VISION system for press automation and defect detection
• Available in multiple configurations with a wide range of options

Your advantages

• Consistent print reproduction
• High throughput and productivity
• Quick job changeovers
• Intuitive, fully integrated control systems
• Packaging 4.0 ready

Applications

• Food and non-food flexible packaging
• Film, paper and laminate substrates
• Designed for solvent- and water-based inks
• In-line flexo/rotogravure processes and downstream units
• Special applications: tube printing, inline slitting, EB/UV systems

TECHNICAL SPECIFICATIONS
MIRAFLEX II M | MIRAFLEX II L
Color decks — 8 / 10 | 8 / 10
Print width — 820 / 1000 / 1270 / 1450 mm (32.25" / 39.25" / 50" / 57") | 1000 / 1270 / 1450 mm (39.25" / 50" / 57")
Repeat length — max. 800 mm (31.5") | max. 1130 mm (44.5")
Press speed — max. 400 / 500 / 600 m/min (1300 / 1640 / 1960 ft/min) | max. 400 / 500 / 600 m/min (1300 / 1640 / 1960 ft/min)

Features / technical details

• Models: MIRAFLEX II M, MIRAFLEX II L
• Color decks: 8 or 10
• Print widths as listed above
• Repeat lengths as listed above
• Press speeds up to 400/500/600 m/min depending on configuration
• Suitable substrates: film, paper and laminates
• Ink systems: solvent-based and water-based inks supported
• Integrated VISION automation for print monitoring and defect detection
