Gantry palletizer ARCOMAT 3+

layerrobotizedfor sacks

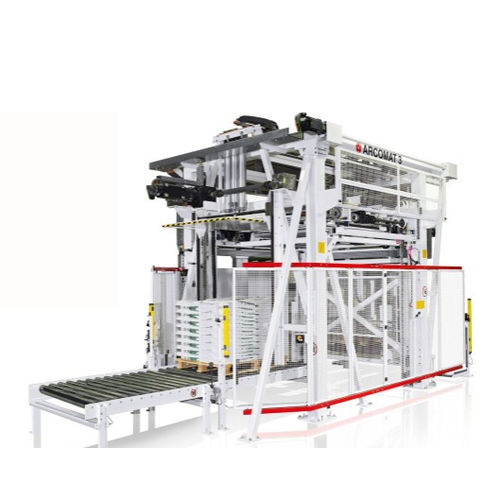

ARCOMAT 3+ — 3-axis portal robot for palletising paper sack packets
The ARCOMAT 3+ is a 3-axis portal robot engineered to palletise packets of paper sacks with precise layer formation and repeatable stack quality. It is controlled via PC and uses modern servo drive technology. A graphical operator interface enables straightforward programming of layer patterns and layer sequences to adapt to different sack formats and production needs.

Your advantages

• up to 33 packets/min
• consistent, high-quality stacking
• high degree of automation and integration

Applications

• paper valve sacks

Product information
The ARCOMAT 3+ is supplied with extensive peripheral equipment: packet feeding with buffer store and packet alignment, an automatic empty-pallet magazine, stack removal and a stack pre-pressing system. An inter-layer sheet inserter is available as an option for stabilising critical layer patterns. The integrated palletising table allows layer formation on a plane surface and instantaneous pressing of each layer, improving overall stack stability. Machine performance has been optimised to reach up to 33 cycles per minute, enabling maximised bottomer output even with packets containing few sacks or where packet flatness is critical.

Technical data
Sack width: 18 – 74 cm
Sack length: 25 – 138 cm
Pallet dimensions: 60 x 75 cm – 140 x 150 cm
Stacking height: max. 250 cm
Output: max. 33 packets/min

Characteristics / Technical specifications

• Machine type: 3-axis portal robot for palletising paper sack packets
• Control: PC control with graphical operator interface for layer pattern and sequence programming
• Drive technology: powerful servo drives
• Packet handling: packet feeding with buffer store and packet alignment
• Peripheral equipment: automatic empty-pallet magazine, stack removal, stack pre-pressing system
• Optional equipment: inter-layer sheet inserter for stabilising critical layer patterns
• Palletising table: plane-surface palletising table allowing instantaneous pressing of the stack
• Performance: up to 33 cycles (packets) per minute
• Sack width range: 18 – 74 cm
• Sack length range: 25 – 138 cm
• Pallet dimensions supported: 60 x 75 cm up to 140 x 150 cm
• Maximum stacking height: 250 cm
