Plastic bag making machine SERVOTEX

paperautomatichigh-speed

Overview

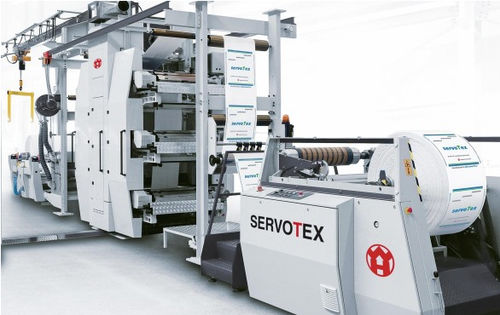

SERVOTEX is a roll-to-roll flexographic printing machine series derived from Windmöller & Hölscher's flexo expertise and designed for precision printing on woven substrates and flexible packaging. Standard models support up to 6 colours; the SERVOTEX MULTI variant supports up to 12 colours.

Applications and materials

• PP/PE woven fabric (flat or tubular), coated or uncoated
• Paper
• PE film

Technical data

• Maximum reel width: 850 mm
• Maximum printing width: 820 mm
• Print repeat range: 450–1,450 mm
• Fabric grammage: tubular up to 100 g/m² (2x); flat fabric up to 180 g/m²
• Available colours: standard up to 6; SERVOTEX MULTI up to 12
• Maximum production speed: up to 250 m/min (depending on material and process)

Key features

• Modern servo-drive concept for precise registration and ink transfer
• SERVOTEX SL sleeve technology for fast, high-precision job changes
• Full-speed automatic main reel change to maximise productivity
• Modular configuration options to adapt to different production requirements

Corporate note
In December 2024 Windmöller & Hölscher sold its woven packaging division to Starlinger. The subsidiary W&H Machinery GmbH (Vienna), with around 25 employees, is part of the transaction. Financial terms are contractually confidential. Both companies indicate continuity of service and support for customers through their sales and service networks.
