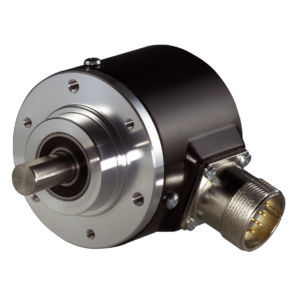

Absolute rotary encoder MS58116-bit20-bitsingle-turn
Add to favorites
Compare this product
Characteristics
- Type
- absolute
- Absolute encoder revolution number
- 16-bit, 20-bit
- Construction
- blind-shaft, single-turn, multi-turn
- Output signal
- analog, parallel, RS-485, SAE J1939, SSI, CANopen, ProfiNet, EtherCAT, PROFIBUS
- Supply voltage
- 5 VDC, 8VDC
- Material
- aluminum
- Protection level
- IP65
- Shaft diameter
Max.: 12 mm
(0.47 in)Min.: 6 mm
(0.24 in)- Rotational speed
6,000 rpm
(37,699 rad.min-1)- Process temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)
Description
In addition to the angular steps per revolution, multiturn encoders also record several revolutions. An internal reduction gear is connected to the drive shaft, through which the number of revolutions is recorded. Alternatively, this can also be determined electronically.
The measured value for multiturn encoders is made up of the angular position and the number of revolutions. The recorded measured value is also calculated and, depending on the interface, output via different interface modules. The interfaces available here are: SSI, Canopen, CAN SAE J1939, RS485, Profibus, Profinet, Ethercat, Biss-C.
Size: Ø 58 mm
Coding: Binary, Gray
Catalogs
No catalogs are available for this product.
See all of W+S Meßsysteme GmbH‘s catalogsOther W+S Meßsysteme GmbH products
ABSOLUTE ROTARY ENCODERS MULTITURN
