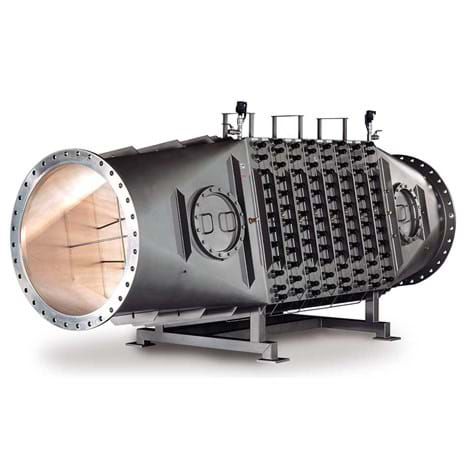

UV disinfection unit K143 series

water

Overview PRODUCT FEATURES Suitable for the disinfection of drinking water 11,500 m³/h (70 MGD) maximum flow rate Validated performance by state-of-the-art bioassay in compliance with USEPA’s UVDGM (2006) High efficiency Ecoray UV lamp & ballast technology OptiDose Control - Xylem's Wedeco true intensity based control philosophy Operator-friendly UV system controller with SCADA Flexible design with easy upgrade ÖNORM-certified UV intensity sensor Extensively tested and sustainable The Wedeco K series is a proven, energy-efficient UV solution for the disinfection of drinking water at large facilities whenever a closed-vessel UV system is preferred. Xylem's Wedeco K series has demonstrated its ability with many installations worldwide for drinking water. The K series UV system has also been extensively tested to meet the U.S. Environmental Protection Agency’s UV Disinfection Guidance Manual (USEPA’s UVDGM, 2006). The extensive validation allows for proven disinfection performance over a wide range of UV transmittance (UVT) values and a variety of target organisms including Adenovirus. Additionally the sensor-controlled OptiDose monitors operating conditions in real time, including flow, UV transmittance, and UV intensity. Then, with proven control logic, OptiDose adjusts the energy consumption to the minimum needed to meet dosing requirements. No assumptions are made regarding process parameters, ensuring cost savings and disinfection confidence at all times.
