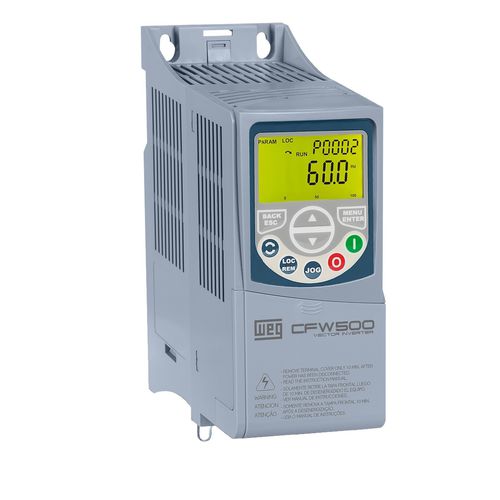

Three-phase AC drive CFW500

single-phasepermanent magnetvector control

the CFW500 frequency inverter is a high performance variable speed drive, which assists in controlling speed and torque of three-phase induction motors. The device offers sensorless vector, vector with encoder or scalar control modes, permanent magnet motor control, SoftPLC, which adds PLC (Programmable Logic Controller) functions, STO and SS1 Safety Functions, Pump Genius, which brings dedicated pumping functions, and selectable plug-in modules, providing a flexible and optimized solution for any application. Main characteristics Single-phase or three-phase supply voltage 200-240 V or 380-480 V; Scalar Control (V / F), Vector Control (VVW), Sensorless Vector or Vector with Encoder Control and Permanent Magnet Motor Control (VVW PM); Selectable plug-in modules; Plug and Play philosophy; Built-in operating and programming interface (HMI); Built-in RS485 port (in any selected plug-in module); Pump Genius: functions dedicated to driving pumps; Safety Function: STO and SS1 level SIL 3 / PLe; SoftPLC - built-in PLC functionalities; Braking IGBT (available from frame B); 3C2 or 3C3 protection class for application in environments with corrosive chemicals; Fan with quick exchange system; Internal RFI filter (optional); USB communication port (CFW500-CUSB accessory); Free WLP and WPS programming software application available at
