Natural gas fueling nozzle TK26 CNG

for CNGfor compressed natural gashigh-flow

Overview
The TK26 CNG fueling nozzle is very light and easy to operate. The integrated swivel joint is located at the actuation lever and can be turned to the optimal operating position. The compact actuation lever requires little force to operate the nozzle.

Safety
The TK26 CNG provides operator safety: the nozzle remains connected to the receptacle until the gas volume between inlet valve and receptacle is depressurized.

Application
Fueling nozzle for fast CNG filling of buses and trucks at self-service fueling stations. To be used with WEH® receptacles according to NGV1 standard and ISO 14469.

Features & Benefits

• Coding for pressure range / gas type
• Compatible with receptacles acc. to NGV1 standard and ISO 14469
• Easy operation
• High flow rate → short filling times
• Corrosion-resistant materials
• Plastic thermal protection
• Recirculation of the vented gas
• Super light → approx. 3.5 kg
• WEH® EASY-TURN 360° swivel joint for actuation lever
• WEH® jaw locking mechanism
• Angled grip sleeve for ergonomic operation and optimized hose routing

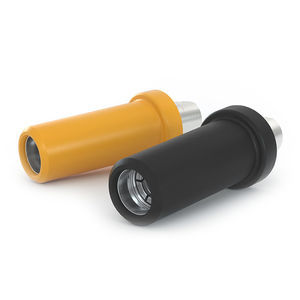

• Color-coded sliding sleeve (200 bar / 3,000 psi black, 250 bar / 3,600 psi yellow)

Technical Data
Technical Nominal Size: 12 mm
Nominal Pressure PN: 200 bar
Max. allowable operating pressure PS: 300 bar
Temperature Range: -40 °C up to +85 °C
Media Inlet: UNF 9/16"-18 male thread, SAE J514, 37° cone
Material: Corrosion resistant
Sealing Material: Natural gas resistant
Design: With plastic thermal protection and gas recirculation
Coding: P30HD acc. to ANSI NGV1 / C200 acc. to ISO 14469; PN = 200 bar (3,000 psi)
Weight: Approx. 3.5 kg
Conformity / Tests / Approvals: In accordance with ISO 14469

Technical specifications

• Technical Nominal Size: 12 mm
• Nominal Pressure PN: 200 bar
• Max. allowable operating pressure PS: 300 bar
• Temperature Range: -40 °C up to +85 °C
• Media Inlet: UNF 9/16"-18 male thread, SAE J514, 37° cone
• Material: Corrosion resistant
• Sealing Material: Natural gas resistant
• Design: With plastic thermal protection and gas recirculation
• Coding: P30HD acc. to ANSI NGV1 / C200 acc. to ISO 14469; PN = 200 bar (3,000 psi)
• Weight: Approx. 3.5 kg
• Conformity / Tests / Approvals: In accordance with ISO 14469
