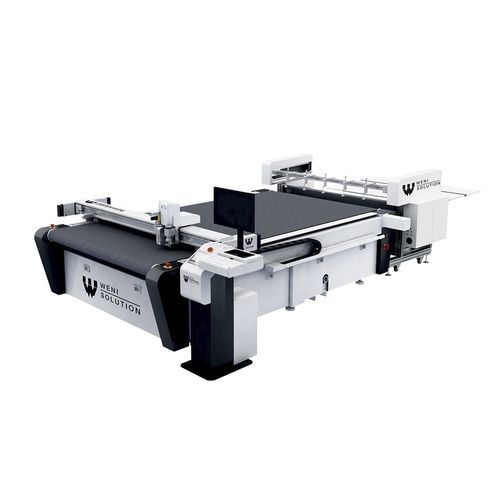

Plastic cutting plotter WS-WB03II

for leatherfor wood

The device of this series is dedicated mainly to the following industries: textile, clothing, advertising, furniture and upholstery. The device has roll material holder which allows you to automatically unfold and cut projects larger than the table length. During the automatic unwinding of the material from the roll, the suction changes into a blow to evenly distribute the material on the work table. The table is divided into 6 independent suction sections (with full control via a touch LCD display), so that even the smallest workpieces will be reliably held in position during the machining process. Thanks modular head and use two tools in one work cycle, the entire production process runs smoothly and quickly. The positioning system used with laser and CCD cameras allows you to perform contour / contour cutting with preservation high precision regardless of the guidance or arrangement of the material on the working area of the table. Extension of the device for an additional fee of automatic loading and unloading system for sheet materials makes the plotter WB03II fully industrial production device. The WS-WB03II plotter is available in five sizes of the working table: WB03II 1113 (1100x1300mm) WB03II 1816 (1800x1600mm) WB03II 2513 (2500x1300mm) WB03II 2516 (2500x1600mm) WB03II 3020 (3000x2000mm) Model & workfield sizes The choice of the model depends on the client's expectations, planned production, prepared budget and many other factors. The models differ in the purpose, size and type of the work table, the possibility of cutting profiles, parameters, etc.
