Linux tablet Rocktab U212 Pro

Windows 11 ProWindows 11 IoT Enterprise11.6"

Product description

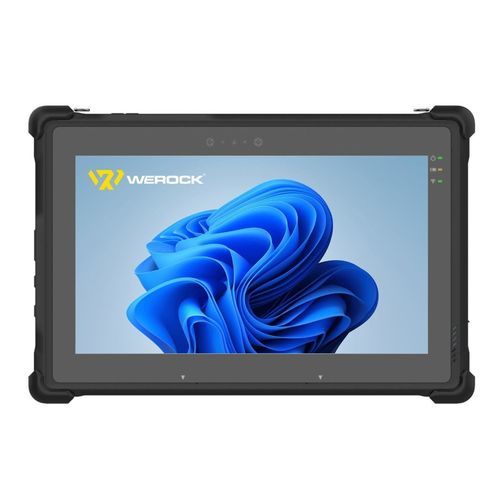

The Rocktab U212 Pro is a compact industrial tablet designed for demanding field and mobile applications. It features an 11.6" Full HD (WUXGA) display with high brightness for use in direct sunlight, a scratch‑resistant 10‑point capacitive multitouch supporting glove and rain modes, and compatibility with an optional digitizer pen.

Durability & mobility
The housing is rated IP65 against dust and water jets and meets MIL‑STD‑810G requirements for shock, vibration and drop protection. Documented drop testing examples include surviving drops from up to 5.5 m and multiple drop sequences (e.g. 26 drops from 1.5 m). With dimensions of 332 x 198.3 x 22 mm and a weight of 1.69 kg, the unit is intended for mobile use and includes a removable hot‑swap battery for extended operational periods.

Performance & storage
Designed for resource‑intensive applications, the U212 Pro ships with Intel® Core™ i5 13th Gen processors (e.g. i5‑1334U / i5‑1335U, up to 4.6 GHz) and Intel® UHD Graphics. Standard memory is 16 GB LPDDR5 (options: 8 GB or 32 GB). Storage options include modular M.2 NVMe SSDs (256 GB, 512 GB, 1 TB) and microSD expansion; some configurations in documentation reference up to 2 TB internal storage. Other CPU and expanded RAM/storage configurations are available on request.

Connectivity & data capture
Wireless features include Intel® AX211 Tri‑Band Wi‑Fi 6E (2×2 MU‑MIMO) and Bluetooth 5.3. Optional WWAN provides 4G LTE connectivity (up to ~300 Mbps down / 50 Mbps up, region dependent). A uBlox NEO‑M9N GNSS module is included for positioning. Optional add‑ons include 1D/2D barcode scanners (standard range ≈0.8 m; extended range up to 25 m) and NFC.

Multimedia & peripherals
Audio: integrated 2 W speaker, 2 microphones, 3.5 mm headset jack. Cameras: 2 MP front, 8 MP rear with autofocus and flash. I/O: Pogo‑pin, 1× USB 3.1 Gen2 Type‑A, 1× USB‑C (USB 3.x / DP Alt), 1× USB‑C (USB 2.0 with power), RJ45 Gigabit, Micro‑SD slot, Nano‑SIM slot, 3.5 mm combo jack. Several ports are protected by rubber covers.

Highlights

• 11.6" Full HD (WUXGA) IPS display, 1920×1080, 650 cd/m², sunlight readable
• IP65 protection; meets MIL‑STD‑810G drop and shock criteria
• Intel® Core™ 13th Gen CPUs and Intel® UHD Graphics
• 16 GB LPDDR5 RAM standard; configurations up to 2 TB internal storage possible
• Slim, compact housing; weight 1.69 kg
• Removable 64 Wh hot‑swap battery for extended use
• Scratch‑resistant 10‑point multitouch with glove and rain modes; digitizer compatible
• Wide accessory ecosystem (docking stations, vehicle mounts, pens, carry handles, etc.)

Technical specifications (excerpt)
Housing: black PC‑ABS, anti‑slip; cooling via IP65 fan; ports with rubber covers; mounting points and Kensington lock
Dimensions: 332 x 198.3 x 22 mm
Weight: 1.69 kg
Battery: removable 7.68 V / 8,340 mAh (64 Wh) Li‑ion + 7.4 V / 80 mAh secondary cell, hot‑swap capable
Input / charging: 20 V DC / 3.25 A (65 W) max., USB‑C Power Delivery
Operating temperature: -20 °C to +60 °C
Storage temperature: -20 °C to +60 °C
Humidity: 95% non‑condensing
Sealing: IP65
Drop resistance: exceeds MIL‑STD‑810G tests (e.g. 26 drops from 1.5 m; 40 drops from 1.0 m).

Technical characteristics / specifications

• Display: 11.6" IPS‑LCD, 16:10, 1920×1080 (WUXGA), 650 cd/m²
• Touch: capacitive 10‑finger multi‑touch, glove & rain mode, digitizer compatible
• Processor: Intel® Core™ i5‑1334U / i5‑1335U (10‑core, up to 4.6 GHz); other CPUs on request
• Graphics: Intel® UHD Graphics
• Memory: 16 GB LPDDR5 (optional 8 GB or 32 GB)
• Storage: M.2 NVMe (256 / 512 GB / 1 TB); microSD expansion (up to 256 GB); some configs up to 2 TB internal
• Wireless: Intel® AX211 Wi‑Fi 6E (2×2 MU‑MIMO), Bluetooth 5.3
• WWAN: optional 4G LTE (up to ~300 Mbps DL / 50 Mbps UL)
• GPS: uBlox NEO‑M9N
• Camera: 2 MP front, 8 MP rear with autofocus & flash
• Audio: 2 W speaker, 2 microphones, 3.5 mm headset
• I/O: Pogo‑pin, USB 3.1 Gen2 Type‑A, USB‑C (DP Alt), USB‑C (power), RJ45 GbE, Micro‑SD, Nano‑SIM, 3.5 mm
• Security & management: TPM 2.0 optional; Intel security & management features
• OS: Windows 11 Pro (standard), Windows 11 IoT Enterprise (opt.), Ubuntu Linux (opt.)
• Included accessories: cables vary by configuration
• Warranty: 2 years (extendable)
