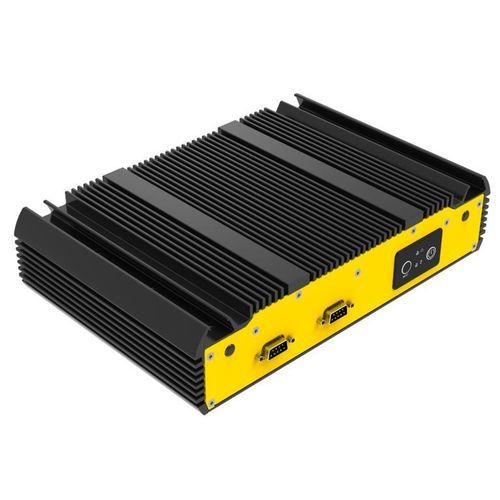

Edge AI PC Rocksmart RSX1000

embeddedIntel® Core™ i3-1315UEIntel® Core™ i5-1345UE

Product Overview
The Rocksmart RSX1000 is a fanless industrial embedded PC engineered for reliable 24/7 edge computing in machines, mobile equipment and plant installations. Its passive cooling, wide DC input range and boot-on-power capability enable unattended and mobile deployments while supporting demanding edge workloads with 13th Gen Intel® Core™ processors and flexible expansion.

Key Features

• Passive, fanless design for continuous low‑maintenance operation and dust resistance
• Vibration- and shock-resistant construction for direct integration into machines and vehicles
• Wide input voltage: 12–24 V DC ±10% (optional 9–60 V DC ±10%) with boot-on-power
• 13th Gen Intel® Core™ options (i3/i5/i7) with Intel® Iris® Xe Graphics for multi‑screen use
• Scalable memory and storage: up to 64 GB DDR5, M.2 NVMe PCIe Gen4 SSDs, optional SATA
• Industrial I/O out-of-the-box: dual LAN, multiple USB ports, RS-232/422/485 serial interfaces

Applications

• Machine and plant integration: edge computing, HMI/SCADA, data acquisition
• Vehicles and mobile machines: telematics, edge analytics, gateway functions
• Control stations and visualization: multi‑screen operation, continuous operation
• Integration with industrial peripherals and legacy equipment via serial and fieldbus options

Technical Specifications (summary)
Housing: Robust aluminum housing with cooling fins, yellow front/rear, fanless
Dimensions: 256 x 170 (209) x 58 mm
Weight: Approx. 2.5 kg
Operating temperature: 0 °C – +60 °C (optional -40 °C – +60 °C)
Storage temperature: -40 °C – +85 °C
Humidity: 95% non‑condensing
Input voltage: 12–24 V DC ±10% (optional 9–60 V DC ±10%)

Connectivity & I/O (standard configuration)
USB: 1 x USB 3.2 Type‑C Gen2 (10 Gbps, DisplayPort 1.4 Alt Mode), 4 x USB Type‑A 3.2 Gen2 (10 Gbps); optional USB4/extra USB2.0 ports
LAN: 2 x RJ45 (1 x 1 GbE, 1 x 2.5 GbE); optional 10 GbE/additional 1 GbE
Video outputs: 1 x HDMI 2.0b (up to 4096×2160 @60Hz), 1 x DP 1.4 (up to 4096×2304 @60Hz); up to 3 displays via HDMI+DP+USB‑C Alt Mode
Serial: 2 x RS‑232/422/485 (max. 1 Mbps); optional extra RS‑232 ports
CAN Bus: 2 x CAN 2.0 (optional)

Optional Features & Expandability

• WLAN/Bluetooth: Intel AX210 Wi‑Fi 6E + Bluetooth 5.3 (optional)
• WWAN: 4G LTE variants and optional 5G (FRMCS-ready) modules
• Boot-on-Power and ignition‑controlled shutdown for vehicle use
• Project options: GPS, LoRaWAN, Hailo‑8 AI accelerator, CANopen/DeviceNet, fieldbus and real‑time Ethernet (EtherCAT, PROFINET, POWERLINK, Modbus, OPC UA, MQTT)

Platform & Performance
OS options: Windows 11 IoT Enterprise, Windows 11 Pro, Ubuntu, Yocto BSP
Processors: Intel® Core i3‑1315UE / i5‑1345UE / i7‑1365UE (13th Gen)
Graphics: Intel® Iris® Xe (i5/i7), Intel® UHD Graphics (i3)
Storage examples: M.2 PCIe Gen4 NVMe SSDs (up to 2 TB), optional SATA expansion
Memory: 4–64 GB DDR5 4800 MHz

Security & Service
Security: Watchdog timer, TPM 2.0, Boot Guard, AES instructions, VT‑x/VT‑d, OS Guard
Included accessories: External 110–240 VAC power supply, mounting bracket
Warranty: 2 years; extended warranty and service options available

Characteristics / Specifications

• Product: Rocksmart RSX1000 — fanless embedded industrial PC
• Sealing & protection: IP65 (except connections), MIL‑STD‑810G compliant
• Vibration resistance: 3.5 Grms
• Indicators & keys: Power LED, HDD LED, Power button, Reset
• Typical I/O: USB Type‑C Gen2, USB A 3.2 Gen2, dual RJ45 (1 GbE + 2.5 GbE), HDMI 2.0b, DP 1.4, RS‑232/422/485
