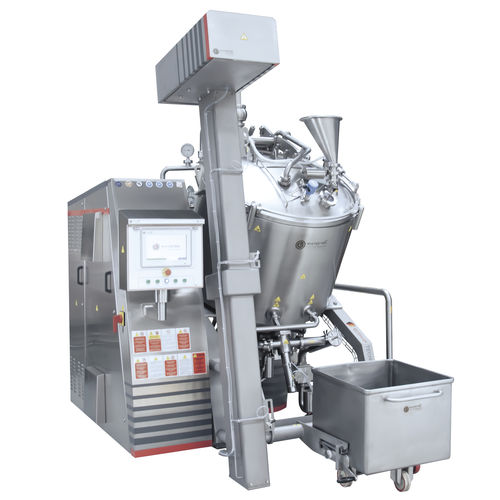

Process reactor I-22

batchfor foodcooling

DESCRIPTION: The White Steel GmbH Industrial Mixers (Cooker& Cooler& Mixer) are configurable for many different applications, some examples are processed cheese, dressings, sauces, baby food, confectionery fillings, almond paste, mayonnaise & ketchup and be able to handle with different tasks such as mixing, heating up, cooling, grinding, emulsifying, size reduction, direct or indirect cooking under vacuum, deaerating (vacuum) and homogenizing. SPECIFICATION: • Short batch times • Easy cleaning • Durable machines • Homogeneous mixing and effective cutting • Compact design • Complete product discharging • PLC and HMI controlling process • Configurable for many different products applications • Easy to integrate in a production line • Saving food flavors and colors Applications: • Processed cheese • Philadelphia cheese • Turkish labneh Features: • Inclined design • Frequency controlled main motor: 2 knives with 300-3000 rpm • Motor and gear for scrapper arm • Direct steam injection Qty.4 • Double jacket (heating/cooling) • Water cooled mechanical seal • Vacuum pump • Discharge pneumatic valve • Steam separation, filtration and pressure regulation devices • Discharge pump • CIP pump • AISI 304 quality stainless steel material • Sight glass with wiper on the lid • Product processing capacity: max. 600 Liters/ Actual volume • Processing temperature: 95 °C • Maximum vacuum (negative) pressure in the bowl; -0,8 bar, the maximum positive pressure, 1,5 bar • Lid opening hydraulically • Lid locking pneumatically • Vacuum pump • Automatic lifter with trolley • (HMI) by PLC system and touch screen • Electromagnetic flow-meter • Homogenizer
