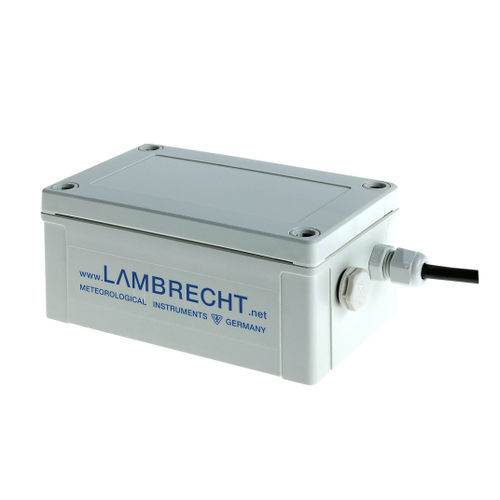

Absolute pressure sensor 8121piezoresistive4-20 mAvoltage output
Add to favorites
Compare this product
Characteristics
- Pressure type
- absolute
- Technology
- piezoresistive
- Output
- 4-20 mA, voltage output, current output
- Supply voltage
- 24VDC, 12VDC, 15VDC, 5VDC, 8VDC, 9VDC
- Mounting
- wall-mounted
- Fluid
- for air
- Protection level
- IP66
- Applications
- for weather stations
- Other characteristics
- OEM
- Pressure range
Min.: 50,000 Pa
(7.25 psi)Max.: 110,000 Pa
(15.95 psi)- Process temperature
Min.: -20 °C
(-4 °F)Max.: 70 °C
(158 °F)
Description
• Building services
• Industrial applications
ABSOLUTE PRESSURE
is measured inside the cost effective, practical and robust standard housing. The technical design enables the on site changeover of the measuring range, as well as the choice of the output signal. This universally applicable sensor is the right solution for price conscious customers. It distinguishes itself through its low maintenance and easy operation.
• Cost effective
• For use with data loggers in power saving mode (e.g. solar operation)
• One device with two pressure measuring ranges and three standard outputs; adjustable via jumpers
