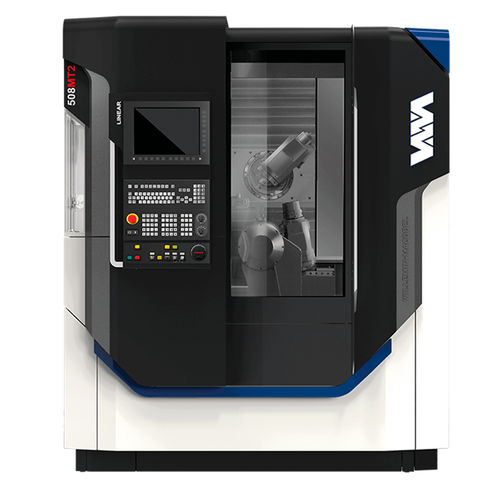

6-axis CNC machining center 508MT2

7-axis8-axisvertical

The 508MT2 is a multi-process machining center dedicated to machining complex parts from bar stock or in one-piece mode. It is equipped with a swiveling powered spindle fitted on a B axis and a high-precision A axis divider/spindle enabling turning operations up to 6000 rpm. As an option, it is possible to machine bars up to 65 mm in diameter. The 508MT2 machining center can be equipped with an innovative pickup turret with 3 usable positions including a counter-spindle, a precision vice and a tailstock center. To meet specific requirements, the 508MT2 can be equipped with a turning turret with eight fixed posts, a rotary tailstock center and an integrated back working vice. Benefiting from the latest technological developments and Willemin-Macodel's comprehensive expertise in high-precision machining from bar stock, the 508MT2 is perfect for cutting-edge industries such as watchmaking, jewelry, medical, aerospace and high-precision mechanical sub-contracting. OTHER CHARACTERISTICS Turning on the A axis up to 6000 rpm Ø 42 mm standard bar passage (Ø 65 mm optional) Turning on the pickup spindle with C axis up to 8000 rpm B axis angular movement -45 ° to +115 ° B axis indexing from 0 ° - 90 ° in 0.2 sec Acceleration of X Y Z linear axes, 10 m/s2 Tool magazine with up to 72 positions Central coolant programmable up to 80 bar Footprint approx 4.2 m2
