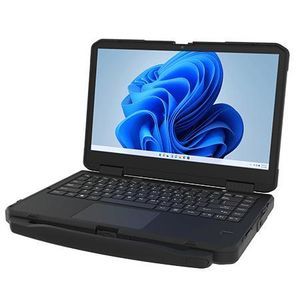

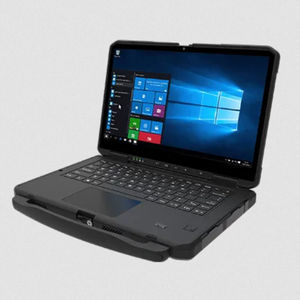

Intel® Core™ i5 laptop computer L156AD
Intel Core i7Intel® Core™ i9-12900HIntel® Core i5-1235U

Intel® Core™ i5 laptop computer - L156AD - Winmate, Inc. - Intel Core i7 / Intel® Core™ i9-12900H / Intel® Core i5-1235U
Intel® Core™ i5 laptop computer - L156AD - Winmate, Inc. - Intel Core i7 / Intel® Core™ i9-12900H / Intel® Core i5-1235U
Intel® Core™ i5 laptop computer - L156AD - Winmate, Inc. - Intel Core i7 / Intel® Core™ i9-12900H / Intel® Core i5-1235U - image - 2
Intel® Core™ i5 laptop computer - L156AD - Winmate, Inc. - Intel Core i7 / Intel® Core™ i9-12900H / Intel® Core i5-1235U - image - 3
Intel® Core™ i5 laptop computer - L156AD - Winmate, Inc. - Intel Core i7 / Intel® Core™ i9-12900H / Intel® Core i5-1235U - image - 4
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Processor
Intel Core i7, Intel® Core™ i5, Intel® Core i5-1235U, Intel® Core™ i9-12900H
Graphic chipset
NVIDIA GeForce
Operating system
Windows 10 IoT Enterprise, Windows 11 IoT Enterprise
Protection level
MIL-STD-810H, IP65, rugged
Integrated peripheral
webcam, with fingerprint reader, with RFID reader, with smart-card reader
Resolution
1920 x 1080
HDD capacity
SSD 256 GB, SSD 512 GB, SD 1 TB, SSD 2TB
Screen type
multi-touch screen, PCAP capacitive touch screen
Network
4G, 5G, GNSS, GPS, GLONASS
Domain
outdoor
Memory
DDR5 SDRAM
Screen size

15.6 in

RAM capacity

Min.: 8 GB

Max.: 64 GB

Description

Overview
  • The L156AD is a rugged 15.6" FHD laptop built for field and industrial use, combining 12th Gen Intel® Alder Lake processors with optional discrete NVIDIA graphics, a PCAP touch display and hot-swappable dual batteries.


Key Features
  • Intel® 12th generation Alder Lake processor family
  • 15.6" FHD display with Projected Capacitive (PCAP) multi-touch
  • Hot-swappable dual-battery design for continuous operation
  • Optical bonding and anti-glare for sunlight readability
  • Magnesium alloy enclosure with double-injection drop protection
  • IP65 dust and water protection


Certifications
  • IP65
  • MIL-STD-461G (selected configurations)
  • MIL-STD-810H (selected configurations)
  • FCC
  • CE


Product Details
  • Construction: Magnesium-alloy chassis with double injection; validated with drop and MIL-STD-810H lab tests.
  • Ruggedization: IP65-rated sealing; shock, vibration and drop performance per MIL-STD methods; optional NATO/STANAG validations.
  • Connectivity: WLAN, BT ; optional 4G/5G WWAN; GNSS (GPS/GLONASS); multiple docking and peripheral options.
  • Expansion: Multiple memory and storage choices; second storage bay available; optional HF RFID reader, fingerprint scanner, smart card reader.


Disclaimer / Notes
  • Accessories and integrated options vary by configuration.
  • Total usable memory and storage depend on system configuration.
  • Actual transfer speeds and battery life vary with configuration and usage.
  • USB Type-C follows USB 3.0 standard; Alternate Mode or USB Power Delivery not guaranteed unless specified.
  • MIL-STD tests performed in laboratory conditions; results do not guarantee future performance under all field conditions.


Specifications
  • Model: L156AD
  • Display: 15.6" FHD (1920 x 1080), Projected Capacitive Multi-Touch (PCAP)
  • Panel Brightness: 800 nits standard; 1000 nits optional
  • Processor: Intel Core i5-1235U standard (up to 4.4 GHz); optional Intel Core i5/i7/i9 variants
  • Memory: 8GB DDR5 standard; optional 16GB / 32GB / 64GB DDR5
  • Storage: 256GB M.2 NVMe SSD standard; optional 512GB / 1TB / 2TB; 2nd storage bay optional (up to 2TB)
  • Security: TPM 2.0 (available), Kensington lock
  • OS: Windows 11 IoT Enterprise LTSC (64-bit) standard; Windows 10 IoT Enterprise LTSC optional
  • Wireless: WLAN, BT ; WWAN 4G/5G optional
  • GNSS: GPS, GLONASS
  • I/O: 1 x USB 3.0 Type-C (ALT/PD per SKU), 3 x USB 3.0 Type-A, 1 x DB9 (RS232/RS422/RS485 switchable), 2 x RJ45 Gigabit, 1 x micro SDXC, 1 x nano SIM
  • Video/Audio: Optional HDMI 4K output, 2MP front camera, 3.5mm combo jack, dual digital microphones, dual speakers
  • Dimensions / Weight: 387.6 x 256 x 38.8 mm; approx. 3.5 kg (varies by configuration)
  • Environment: Operating temp -20°C to 60°C; storage -30°C to 70°C; operating humidity 10%–90% RH (non-condensing)
  • Durability: Shock/vibration/drop per MIL-STD-810H methods (4 ft drop test noted); optional NATO/STANAG validations
  • IP Rating / EMC / TEMPEST: IP65; MIL-STD-461G EMC (selected); optional TEMPEST / NATO equivalents
