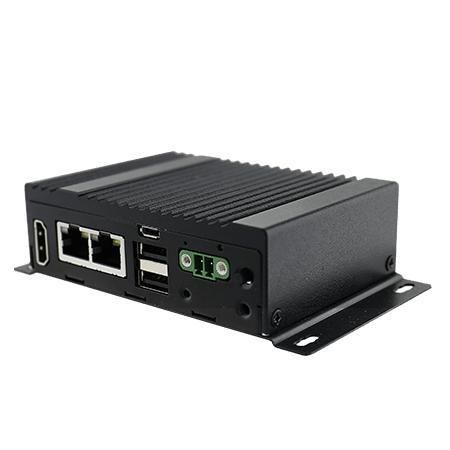

Box PC EACFA20

desktopwall-mountedDIN rail

Overview
EACFA20 is a compact fanless industrial Box PC and IoT gateway based on the NXP i.MX6 Dual Core 1.0 GHz. It uses a modular slice stacking system: the base module provides the core board and passive cooling while I/O and wireless options are added via stacked expansion modules. Designed for smart factory, machine automation and IIoT deployments. Supports embedded Linux and Android.

Key features

• NXP i.MX6 Dual Core 1.0 GHz (ARM Cortex-A9)
• Fanless passive cooling
• Compact modular size: 100 x 70 x 31 mm (single layer)
• Multiple mounting: desk, wall, VESA, DIN-Rail
• Flexible expansion: 15+ module combinations (serial, digital I/O, CANbus, WWAN, USB)
• Microsoft Azure Certified for IoT; AWS IoT Greengrass certified
• Supports Linux (Ubuntu/Yocto) and Android
• Low power consumption (typically < 5 W)
• Metal enclosure with shock and vibration tolerance

Certifications

• CE
• FCC
• Microsoft Azure Certified for IoT
• AWS IoT Greengrass Certified
• IP30

Product details
Compact fanless design with integrated heatsink and passive thermal dissipation. USB OTG (Micro USB) for host/peripheral roles. Dual Gigabit LAN and optional HDMI. Power input 9–36 V DC via 2-pin terminal block. Multiple mounting accessories enable plug-and-play deployment. Cloud-ready with Azure and AWS certifications to simplify secure IIoT connectivity.

Technical specifications

• Processor: NXP i.MX6 Dual Core 1.0 GHz
• Memory: 1 GB default, 2 GB optional LPDDR3
• Storage: eMMC 16 GB default, 32 GB optional; microSD slot
• Expansion slots: 1 x full-size mPCIe, 1 x Mini PCIe; M.2 E-Key referenced
• USB: 2 x USB 2.0 Type-A; 1 x USB 2.0 OTG (Micro USB)
• LAN: 2 x Gigabit RJ45
• Video: 1 x HDMI 1.4 (optional)
• Serial: 1 x RS232/422/485 (configurable) plus additional via modules
• Power: 9–36 V DC, 2-pin terminal block; optional 12 V / 36 W adapter
• Dimensions: 100 x 70 x 31 mm (single); 100 x 70 x 61 mm (double)
• Weight: 0.4 kg (single); 0.5 kg (double)
• Operating temp/humidity: 0°C to 55°C; 30%–90% RH non-condensing
• IP Rating: IP30

Expansion modules

• EACWSLT-222: WWAN expansion (single SIM)
• EACWSLT-231: 3-port RS232/422/485 with isolation
• EACWSLT-232: 16-channel digital I/O with isolation
• EACWSLT-233: 2-port CANbus with isolation
• EACWLST-234: 3-port USB 2.0
• EACWLST-235: 2-port RS232/422/485 with isolation

Accessories & ordering options

• Quick Start Guide, terminal block adapter cable, open-wire DC cable
• External antennas for WLAN/WWAN SKUs
• Optional VESA and DIN-Rail mounting kits
• Optional AC-DC adapter 12 V / 36 W

Typical applications

• Edge IoT gateway for smart factory and machine-to-cloud
• Remote monitoring and data acquisition
• Protocol conversion (Modbus/serial to MQTT)
• Lightweight embedded control or headless Android deployments
