Android 9.0 handheld computer E500QK-ML

Qualcomm® Snapdragon™ 660GNSSBluetooth

Overview

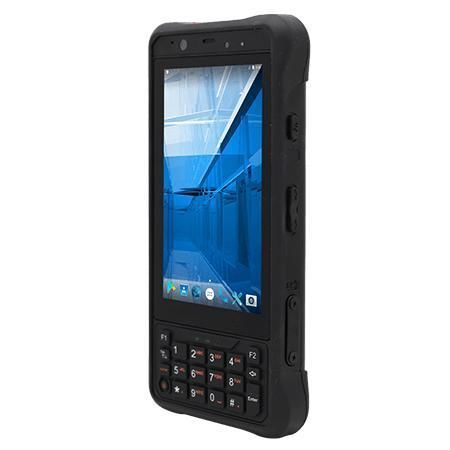

The Winmate E500QK-ML is a 5-inch rugged handheld computer powered by Qualcomm® Snapdragon™ 660, engineered for defence, field command and mission-critical mobile operations. It delivers a balance of sustained performance, long lifecycle availability and environmental resilience for industrial buyers, OEMs and system integrators.

Key features

• Qualcomm® Snapdragon™ 660 (Octa-Core 2.2 GHz)
• 5" 1280 x 720 display with direct optical bonding and 500 nits brightness (PCAP multi-touch)
• IP67 ingress protection and MIL-STD-810G compliance (shock, vibration, 5 ft drop)
• 8 MP front camera (standard); 13 MP rear camera optional with LED auxiliary light and autofocus
• 19-key physical keypad including power key; on-screen QWERTY and programmable function keys
• Optional defence-grade connector (power + USB; optional LAN & audio) for system integration

Certifications

• MIL-STD-810G
• IP67
• CE, FCC

Rugged design & field use
The device is built for harsh environments with reinforced chassis and optical bonding for sunlight readability. It supports operation with fingers, gloves and in rain; thermal and vibration-resistant construction enables reliable field use and integration into rugged systems.

Connectivity & sensors

• GNSS (GPS/AGPS), WLAN and Bluetooth for real-time connectivity
• Optional NFC (Read/Write, Peer-to-Peer) for RFID workflows
• Ambient light sensor, e-compass, gyro and accelerometer

Product FAQs - Summary

• Defence-grade connector option provides a rugged multi-signal interface for power, USB and optional Ethernet/audio.
• High-capacity 3,900 mAh non-removable battery; vendor figures list up to ~20 hours depending on usage.
• PCAP multi-touch supports finger, glove and rain modes for field operability.
• Supports mobile device management (SOTI MobiControl) for large-scale deployments.

Technical specifications

• Model: E500QK-ML
• Brand: Winmate
• Display: 5.0 inches, 1280 x 720, Projected Capacitive Multi Touch (PCAP), 500 nits, optical bonding
• Processor: Qualcomm® Snapdragon™ 660 (Octa-Core 2.2 GHz)
• Memory: 3 GB
• Storage: 32 GB
• Operating System: Android 9.0
• Cameras: Front 8 MP (standard); Rear 13 MP optional with LED and AF
• Dimensions: 192 x 92 x 29.25 mm; Weight: 370 g
• Battery: 3.7 V, 3900 mAh non-removable; Battery life: up to 20 Hr (vendor figure)
• Ports: 1 x USB 3.0 Type-C OTG (charging supported); internal non-accessible Micro SD slot
• Expansion: Optional military/defence connector (power, USB; optional LAN & audio)
• Audio: Built-in mic and speaker; 1 x LED indicator
• Operating range: -20°C to 60°C; Storage: -30°C to 70°C; Humidity: 5%–95% RH non-condensing
• Shock/Vibration/Drop: MIL-STD-810G (516.6, 514.6; 5 ft drop)
• IP Rating: IP67
• Certifications: CE, FCC
• Security / MDM: SOTI MobiControl compliance
• Included accessories: Universal adapter, USB Type-C cable; Optional accessories: Micro SD, military connector
