Embedded computer SYS-ITX-N-3800
desktopIntel® Atom E3845gigabit Ethernet

embedded computer
embedded computer
embedded computer
Add to favorites
Compare this product


embedded, desktop
Intel® Atom E3845
gigabit Ethernet, VGA, DisplayPort, Ethernet, RS-232, USB 3.0, WiFi, serial port, GPS, 3G, SATA
industrial, medical
Other characteristics
fanless, Linux, Windows 10

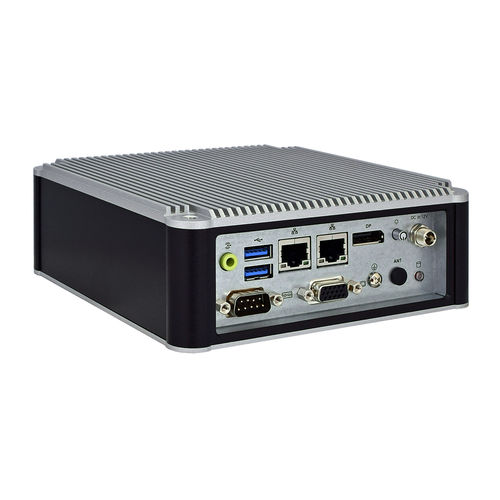

WINSYSTEMS’ SYS-ITX-N-3800 is a NANO-ITX Industrial Computer (SBC) based on the Intel® Atom™ E3800 Bay Trail processor family. It uses less than 10 watts for fanless applications and performs reliably in industrial operating temperatures ranging from -25º to +60ºC. It includes a SODIMM socket supporting up to 8 GB of DDR3 system memory and internal mounting support for one 2.5” SATA HDD/SSD. Additional expansion is available through MiniPCIe. The SYS-ITX-N-3800 is a full-featured fanless embedded computer with onboard I/O that simultaneously supports VGA and DisplayPort video, dual Gigabit Ethernet ports, two USB 3.0 ports, one serial RS-232/422/485 port, audio, and watchdog timer. It also has a half-size MiniPCIe socket and an antenna hole for WiFi or 3G/GPS module. This embedded computer supports Linux, Windows® 10 desktop, Windows 10 IoT, and other x86-compatible real-time operating systems. Drivers are available from the WinSystems website. The SYS-ITX-N-3800 is designed for long-term availability and is FCC- and CE-certified, and designed for industrial IoT, medical, communications and digital signage applications. Intel® Bay Trail E3845/E3827 Processor Two 10/100/1000 Mbps Ethernet Ports DisplayPort and VGA outputs for dual displays Up to 8GB DDR3-LV RAM 2 USB 3.0 1 Serial Port (RS-232/422/485) Audio Output 1 Half MiniPCIe Socket, 1 PCIe slot MSATA Two SATA 3.0 ports and 1 Micro SD for storage -25°C to +60°C Operational Temperature


No catalogs are available for this product.

See all of WinSystems, Inc.‘s catalogs
