Electrical wire cutting machine WI-C1knifefor coppertube
Add to favorites
Compare this product
Characteristics
- Technology
- knife
- Material
- for copper
- Product handled
- tube, cable, for electrical wire, for thermo-shrinkable sleeve
- Control type
- CNC
- Applications
- for industrial applications, for aeronautical applications, for the electronics industry, for the aerospace industry
- Workpiece loading
- manual loading, with automated loading
- Configuration
- compact, bench-top
- Other characteristics
- automatic, precision, CE, high-efficiency, to length, with servo-motor, economical, programmable, electric, with automatic feeder, mobile, for cable tray, for small diameter
- Tube diameter
Min.: 0 mm
(0 in)Max.: 5 mm
(0 in)- Overall length
215 mm
(8 in)- Maximum width
173 mm
(7 in)- Height
226 mm
(9 in)- Weight
Min.: 3.5 kg
(7.72 lb)Max.: 4 kg
(8.82 lb)- Power supply
110 V, 230 V
- Accuracy
1 %
Min.: 0 %
Max.: 1 %
Description

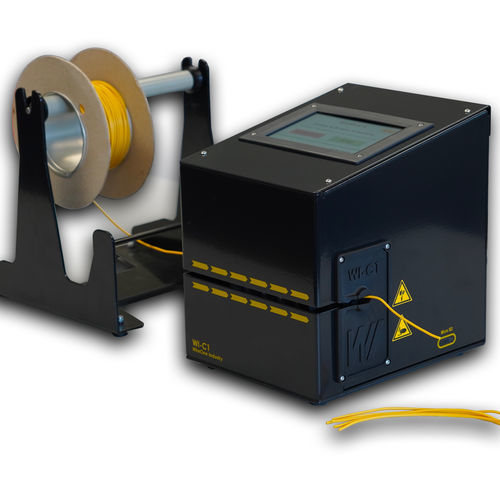

W1-C1 is an automatic machine for cutting electrical wires, tubes, and flexible sleeves.
Designed for very simple and quick use, the WI-C1 features a touchscreen with an HMI (Human-Machine Interface) for occasional cuts, as well as PC software to save your cable sets in advance.
• Accuracy of ± 1%
• Super lightweight and compact
• Programming software on computer
• Storage of your cable sets
• Ultra-adhesive wire drive system
Technical Specifications:
- MATERIALS PROCESSED: Flexible electrical wires, tubes, sleeves
- ACCURACY: ± 1%
- OUTER DIAMETER: From 0.1 mm up to 4.5 mm
- COPPER SECTION: From 0.1 mm² up to 6 mm²
- MAX CUTTING LENGTH: 9999 cm – 9999 in
- MIN CUTTING LENGTH: 3 cm
- PROGRAMMABLE MEMORY: Up to 500 million different programs
- DIMENSIONS (H x W x D): 226 x 173 x 215 mm
- WEIGHT: 3.5 kg
- POWER SUPPLY: 230 V – 110 V
