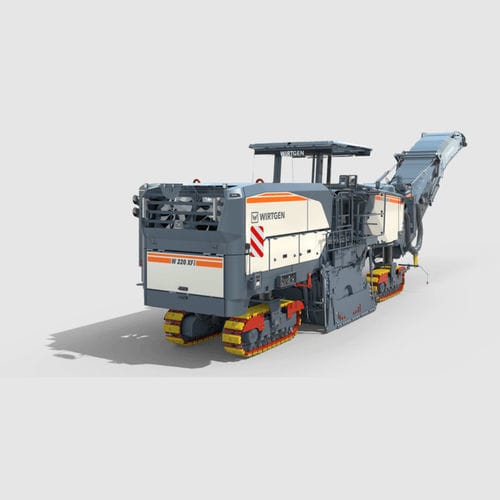

Large cold planer W 220 XF

compact

Overview
Compact, heavy-duty cold milling machine for surface rehabilitation, full-depth removal and fine milling. Front-loader concept with centrally arranged milling drum and powerful, height- and slewing-adjustable discharge conveyor suitable for loading large trucks.

Key benefits

• Wide application range from surface layer rehabilitation to complete pavement removal and fine milling.
• Fast milling drum and assembly changes with MCS (Multiple Cutting System) for milling widths of 2.2 m, 2.5 m, 3.5 m or 3.8 m.
• MILL ASSIST automatic mode optimizes the balance between performance, cost and quality with selectable operating strategies.
• DUAL SHIFT powershift transmission provides an extended range of drum speeds for demanding milling tasks.
• LEVEL PRO ACTIVE levelling integrated in the control system ensures precise height control and machine positioning.

Operator’s platform — features

• Clear view of all key working areas and exceptionally powerful LED lighting.
• Generous storage and powerful heating for operator comfort.
• Vertically adjustable weather canopy and SMART KEY for user-specific saved settings.

Intuitive HMI

• Flexible control panel concept: 2" panel with favourites, 5" panels for levelling, 7" panels for information and optional 10" camera/monitor system.
• Centralised controls and clear displays for safe, efficient operation.

LEVEL PRO ACTIVE levelling system

• Simple operating concept with new add-ons and automated functions.
• Enhanced 3D and laser levelling, levelling boom with Sonic-Ski sensors on both sides.
• Improved multiplexing for accurate, repeatable results.

Reliability and service

• Pioneering diagnostic concept and multi-level redundancy in the machine control system.
• Robust CAN network, vandalism protection and time-saving service access for efficient maintenance.

Cutting & change technology

• Very fast milling drum changes with MCS BASIC and easy exchange of drum assemblies.
• HT22 quick-change toolholder system with HT22 PLUS top part for extended service life.
• Improved wear protection on the milling drum assembly.

MILL ASSIST (machine control)

• Automatic mode for maximum cost-efficiency and strategy pre-selection (cost, performance, quality).
• Efficiency indicator, direct CO2 emissions display and documentation functions for site reporting.
• DUAL SHIFT powershift transmission control integrated in machine management.

Environmental and efficiency features

• 2-speed powershift transmission and automatic engine stop/start for fuel efficiency.
• Maximum engine utilisation at low speeds, dual fan cooling and high exhaust gas purification.
• Improved VCS extraction, ECO operating strategy and efficient water management for reduced consumption and emissions.

Technologies & machine type
Large front-loader milling machine with centrally arranged milling drum and forward-loading two-stage conveyor. Powerful, slewing and height-adjustable discharge conveyor for fast loading of large trucks. Walk-through operator’s platform or optional hydraulically moving and swivelling cabin. Four hydraulically steerable and height-adjustable track units. Numerous automated assistance functions support the operator.

Technical specifications (overview)

• Exhaust emissions: EU Stage 5 / US EPA Tier 4f
• Operating weight (CE): 37,800 kg
• Milling width (standard drum): 2,200 mm (MCS options 2.2 / 2.5 / 3.5 / 3.8 m)
• Maximum milling depth: 350 mm
• Engine displacement: 17.9 l
• Max. travel and milling speed: 0 - 88 m/min (0 - 5.3 km/h)
• Maximum power: 627 kW / 853 HP at 1,500 rpm
• Rated power: 627 kW / 853 HP at 1,900 rpm
