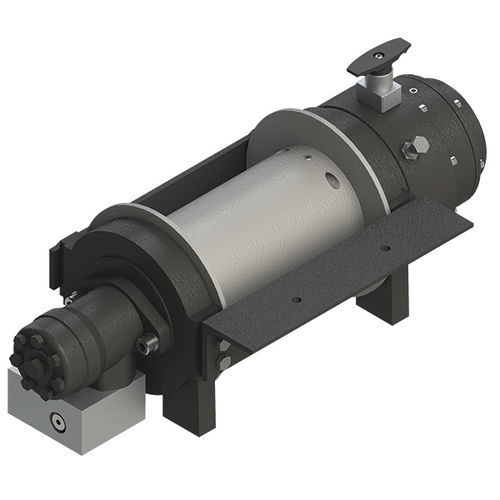

Hydraulic winch WHP seriesplanetarycompact
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Type
- wire rope
- Other characteristics
- compact, planetary
- Speed
Min.: 4,700 mm/min
(3.1 in/s)Max.: 23,600 mm/min
(15.5 in/s)- Cable length
Min.: 8 m
(26'02" )Max.: 130 m
(426'06" )- Pressure
Min.: 15 bar
(217.56 psi)Max.: 120 bar
- Flow
Min.: 57 l/min
(15.06 us gal/min)Max.: 284 l/min
(75.02 us gal/min)- Weight
Min.: 44 kg
(97.003 lb)Max.: 270 kg
(595.248 lb)
Description
WPT planetary winches are dependable, fast, efficient line speed and deliver exceptional performance. Our hydraulic winches feature a load holding cone brake allowing this winch to be utilized for other demands.
Efficient two-stage and three-stage hydraulic planetary design
Multiple disc brake is spring-applied and hydraulically released
Spring-loaded clutch design disengages for free spooling
Catalogs
Winches and Hoists
24 Pages
