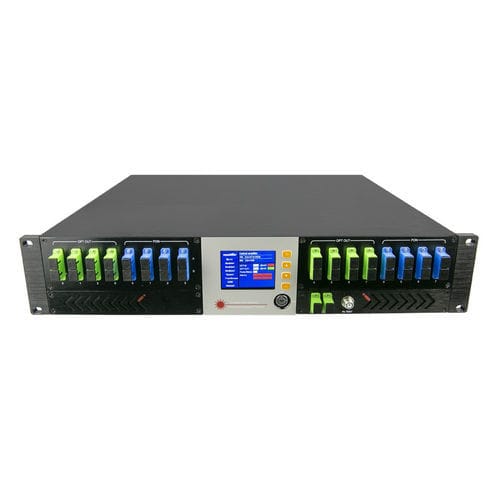

RF amplifier WS-77EYA2U

opticalfiber opticmodular

The 077EYAxx series Er-Yb fiber amplifier is a high-power multi-output fiber amplifier with a gain spectrum bandwidth of 1535~1565nm. It is designed for CATV or applications with 18 continuous channel strips (ITU wavelengths). It provides a flexible and low-cost solution for FTTH large-scale coverage in major cities for CATV systems. n Performance Characteristics u Adopt Er-Yb co-doped double-clad fiber technology and low-noise pump laser. u With a display backlight control function, allowing users to adjust the backlight time as needed. u With a comprehensive audio-visual alarm function, supporting dual alarm through indicator lights and a buzzer. u The entire machine adopts a modular design, making it easy to maintain and manage. u Standard network management interface, supporting both WEB management and SNMP, with a feature-rich WEB interface. u The 2U supports a maximum total output of 41dBm and offers adjustable output power, with an adjustable range of +0.5~-4dBm. u Optional functions include optical switch, optical transmitter, and RF monitoring. u Optional WDM function is available, achieving triple-play integration. u One-click pull-out dual power supply hot backup design. u Optional time management and remote monitoring by mobile phone are available. The 077EYAxx series Er-Yb fiber amplifier is a high-power multi-output fiber amplifier with a gain spectrum bandwidth of 1535~1565nm. It is designed for CATV or applications with 18 continuous channel strips (ITU wavelengths). It provides a flexible and low-cost solution for FTTH large-scale coverage in major cities for CATV systems.
