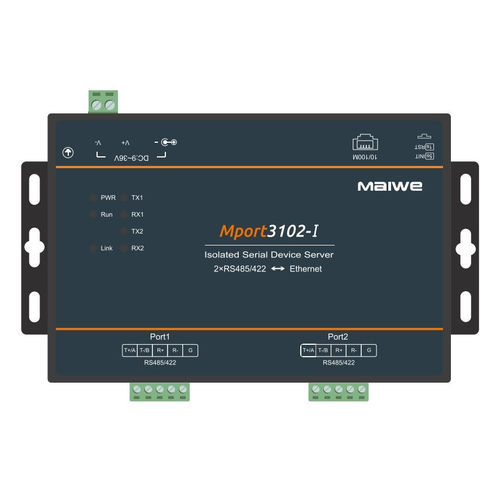

Web server Mport3102-I

networkwall-mountedindustrial

Mport3102-I is RS485/422 wall-mounted Ethernet serial server equipped with a 32-bit Arm Cortex-M7 core that operates at a high frequency of up to 400MHz. It features an external hardware watchdog design. The power supply, network port, and serial ports all have high-level ESD, surge, and EFT protection, making it highly resistant to interference. It is specifically designed to facilitate data transmission between multiple serial ports and Ethernet for industrial users. This product supports 2*RS422/485 serial port and 1*100M port. Each serial port can operate independently without affecting the others and can be configured with different operating modes and baud rates (600bps to 460800bps). It internally integrates a TCP/IP protocol stack, allowing RS485/422 serial devices can be easily, flexibly and quickly connected to Ethernet, making industrial communication more smooth, more reliable, faster. Maiwe industrial-grade Ethernet serial servers support various network management functions through web configuration, including serial port/network operating modes, DNS, network logs, serial port reboot, system management, and more. They also support various conversion modes such as UDP/UDP Multicast, TCP Client/Server, Modbus RTU Master/Slave, Modbus ASCII Master/Slave, RealCOM_MCP/CCP/MW, Pair Connection Master/Slave, HTTPD Client, WebSocket Client, and others, enabling serial-to-Ethernet or Modbus TCP protocol conversion. In terms of core components, it is designed with industrial-grade components, featuring wide temperature and wide pressure range, lightning resistance, anti-electromagnetic interference, high reliability
