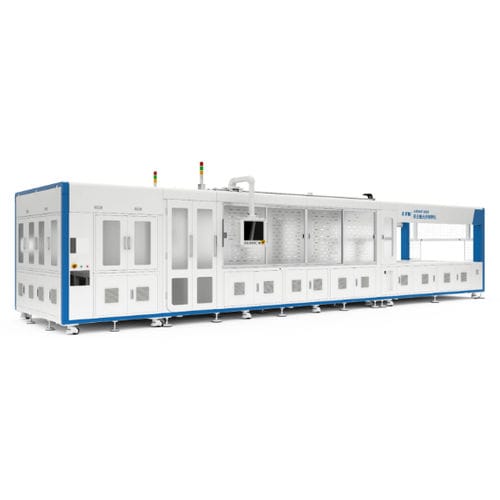

Laser soldering machine MS40A
automatichigh-speedmodular

laser soldering machine
laser soldering machine
Add to favorites
Compare this product


Characteristics

Technique
laser
Operating mode
automatic, high-speed, modular

Description

MS40A High Speed Multi Busbar Cell Soldering Stringer is a fully automatic machine, which can be used with different types of silicon solar cells, monocrystalline or polycrystalline, and solder them into a string. It is suitable for traditional 156 3BB~12BB cells, and 156*78/3BB~12BB half cells (after upgrading). With the use of PLC, servo, SCARA robot, industrial image processor system and other advanced automation technology, all processes from cell feed to string outlet are automated without manual operation. MS40B/C Suitable for 156~185mm cells, Integration of laser cutter is optional MS100 Series Suitable for 156~210mm cells, Inline integration of nondestructive laser cutter is available MS100 Series MS100B MBB PV Cell Soldering Stringer is a fully automatic machine used to solder the mono-Si or poly-Si cells into a string. It can work with 156-216 (5BB-15BB) cells or 156-216 (full, half-cut or 1/3-cut) cells after upgrade. With the use of PLC, servo, SCARA robot, industrial image processor system and other advanced automation technology, the entire process from cell feed to string outlet is fully automated. Perfect Stability Dual-track cell feed, extending the cycle time of single line High Capacity With high production capacity of full/half-cell strings Strong Compatibility Faster and more stable switchover between conventional module and MBB module production due to the changeover of whole set tooling instead of modular changeover Excellent Expandability Cell laser cutter, optical string inspection module, inline EL inspection module, ribbon flattening module, LRF applicator are optional. It can also be upgraded to produce shingling strings.
