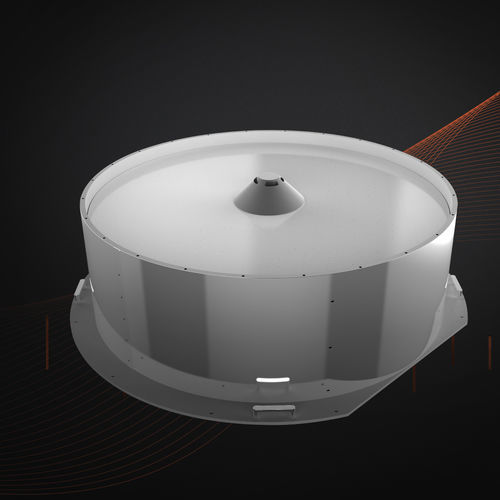

Rotary feeder

vibratingflexiblerotating

Product name
Rotary Flexible Feeder MTD-120-P01-B | MTD-080-P01-B | MTD-050-P01-B

Key advantages

• High bearing capacity for heavy or large-volume parts
• Suitable for a wide size and weight range
  • Size range: 1–300 mm (model dependent)
  • Weight range per part: 1–300 g (model dependent)
• Compatible with multiple materials
  • Metal
  • Soft rubber
  • Glass
  • Ceramics
  • Wood
  • Electronic components
• Rapid changeover
  • Multi-variety universal trays enabling fast switching and quick material clearing
• Efficient control and integration
  • Multi-area synchronous sharing for simultaneous feeding/picking with minimal interference
  • Flexible action logic configuration with multiple feeding schemes

Parameters
Model: MTD-120-P01-B | MTD-080-P01-B | MTD-050-P01-B
Dimensions (L×W×H) mm: 1280×1234×428.9 | 880×834×378.9 | 580×534×328.9
Tray dimensions (Diameter×Height) mm: 1200×50 | 800×50 | 500×40
Weight: approx. 220 kg | approx. 170 kg | approx. 110 kg
Input voltage: — | AC 220V | —
Max current: — | 3 A | —
Operation modes: — | rotation, shaking, vibration | —
Operating frequency: — | 4–10 Hz | —
Equipment noise (no-load): — | < 90 dB | —
Max. load: — | 7 kg | —
Max. part size: ≤300 mm | ≤250 mm | ≤50 mm
Max. single-part weight for tumbling: ≤300 g | ≤250 g | ≤100 g
Driver: — | standard, built-in | —
Communication: PC interface / Modbus TCP; PLC I/O; Danikor hopper RS485/IO; customer hopper I/O

Description
The Rotary Flexible Feeder is engineered for flexible, high-rhythm feeding of diverse part types and materials in industrial production lines. It supports large and heavy parts, rapid variety changeovers and multiple feeding schemes with synchronous multi-area sharing to minimize interference. Typical operation modes include rotation, shaking and vibration. The system can be supplied with a built-in driver (model dependent) and supports PC/Modbus TCP communication as well as standard I/O and RS485 interfaces for hopper integration. Configuration allows tailored action logic and feeding sequences to suit assembly or processing cells.

Technical specifications

• Maximum suitable part dimensions: up to 300 mm (model dependent)
• Maximum single-part tumbling weight: up to 300 g (model dependent)
• Available tray diameters: 1200 mm, 800 mm, 500 mm
• Operating frequency (where specified): 4–10 Hz
• Equipment noise (no-load): < 90 dB
• Maximum load (where specified): 7 kg
• Input voltage (where specified): AC 220V
• Communication: PC interface, Modbus TCP, RS485, I/O
• Driver: standard built-in driver available (model dependent)
