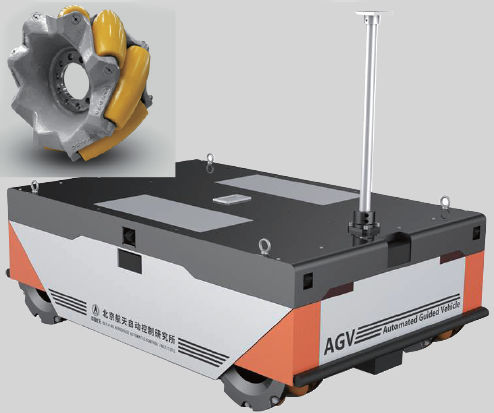

Optic guiding AGV

Automated Guided Vehicle (AGV) is a mobile robot with an automatic navigation device that can travel along a prescribed path. Guidance and control are two key techniques to realize AGV autonomous movement. By digital signal processing of the pictures of guide line on the ground shot by on-board camera, vision guided AGV can get the distance deviation and angle deviation from the guide line. Technical parameters 1. Size: L900*W600*H280 (mm) (customized) 2. Navigation: machine vision guided, magnetic guided (customizable) 3. Walking direction: all directions 4. Communication: wireless communication, ZigBee (optional) 5. Drive mode: different speed drive 6. Drive power: DC48V 7. Max load: 500KG (customizable) 8. Walking speed: 0-60M/min 9. Walking accuracy: 15mm 10. Stop accuracy: 5mm 11. Climbing ability: 3-5 degrees (gradual ascent) 12. Working mode: 24 hours 13. Charging mode: non-contact power supply, charging cabinet (optional) 14. Accumulator battery: lithium battery 15. Environment: indoor temperature: 0-40℃; relative humidity: 40%-80% 16. Safety protection: laser obstacle avoidance sensor 17. Design lifetime: >10 years
