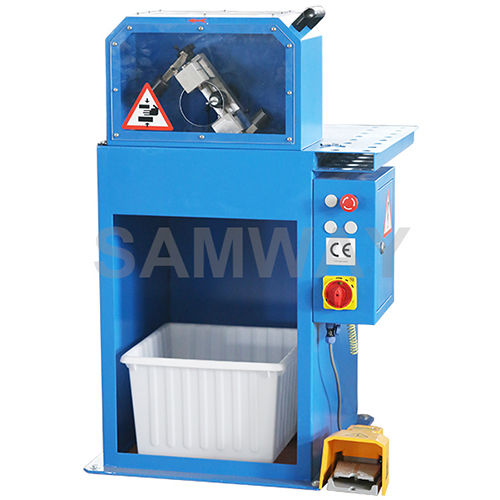

Compact hydraulic hose skiver 51ES
Add to favorites
Compare this product
Characteristics
- Options
- compact
Description
Feature description：
● Foot Pedal Control
● 2 way rotation
● Optional internal skiving tools
● CE Certified
● With Tool Holder
Capacity
- ¼" to 2"Hydraulic Hose
Gearbox
- 0.75KW
Switch
- 2 way rotation
Noise Level
- 60 dBA
Control
- By foot pedal
Emergency Stop
- Standard
Cover Safety Protection
- Standard
External Skiving Tools included
- 06, 08, 10, 12, 16, 19, 25, 32,38, 50
Internal Skiving Tools optional
- UIS.2 DN 16, 19, 25, 32, 38, 51
Weight
- 100 KG
L x W x H (mm)
- 450*400*1400
Order No.
400V, 415V, 440V,480V 3 phase :00004110
220V 60hz 3 phase :00004111
