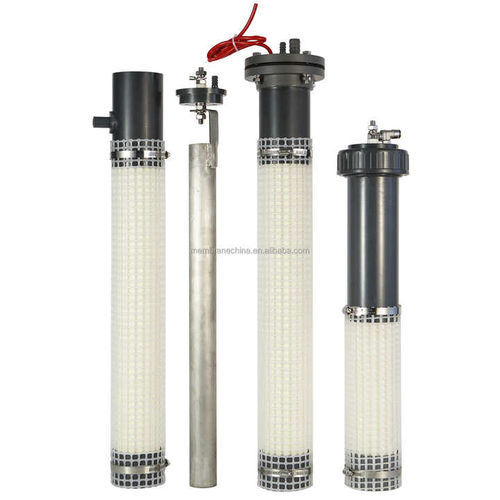

Tubular anode cell

for automobilesfor agricultural machinery

Anode Cells for Electrophoretic Coating Systems Overview Anode Cells, also known as Anolyte Cells, are essential components in cathodic electrophoretic coating (e-coating) systems. They serve to isolate the anode from the paint bath while allowing ion exchange through a selective membrane. This separation helps maintain bath consistency and enhances the overall coating quality. Working Principle Each Anode Cell is made up of a corrosion-resistant stainless steel anode encased in an ion exchange membrane. During e-coating, under DC voltage, positively charged ions (such as amines or contaminants) migrate through the membrane into the anolyte solution. This process: 1. Helps control the pH balance in the bath 2. Improves paint stability and life span 3. Reduces contamination and coating defects Key Features High-performance ion-exchange membrane with excellent chemical resistance Integrated high-strength porous support for structural integrity Stainless steel electrode for durability and corrosion resistance Leak-proof design to avoid paint contamination Efficient anolyte circulation system to aid in heat dissipation and ion removal
