Manually-controlled lathe XYZ 13 series
horizontal2-axisCamlock D1-4

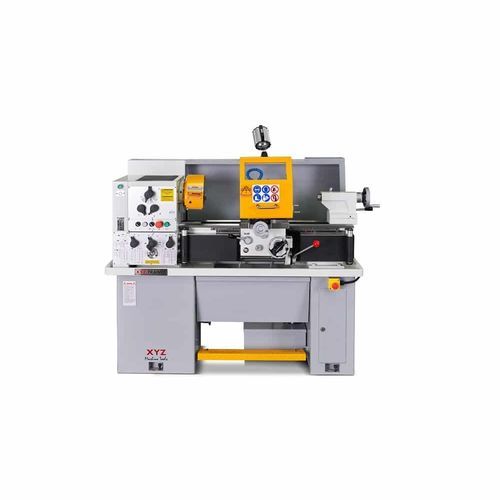

Manually-controlled lathe - XYZ 13 series - XYZ Machine Tools - horizontal / 2-axis / Camlock D1-4
Manually-controlled lathe - XYZ 13 series - XYZ Machine Tools - horizontal / 2-axis / Camlock D1-4
Manually-controlled lathe - XYZ 13 series - XYZ Machine Tools - horizontal / 2-axis / Camlock D1-4 - image - 2
Manually-controlled lathe - XYZ 13 series - XYZ Machine Tools - horizontal / 2-axis / Camlock D1-4 - image - 3
Manually-controlled lathe - XYZ 13 series - XYZ Machine Tools - horizontal / 2-axis / Camlock D1-4 - image - 4
Add to favorites
Compare this product

Characteristics

Control type
manually-controlled
Spindle orientation
horizontal
Number of axes
2-axis
Spindle mount
Camlock D1-4
Diameter

330 mm
(12.99 in)

Spindle speed

Max.: 2,000 rpm
(12,566.371 rad.min-1)

Min.: 40 rpm
(251.327 rad.min-1)

Maximum cutting length

750 mm
(30 in)

Bar capacity

35 mm
(1 in)

Nominal power

3 ch
(3 hp)

Overall lenght

1,560 mm
(61 in)

Overall width

780 mm
(31 in)

Overall height

1,440 mm
(57 in)

Weight

820 kg
(1,808 lb)

Description

3 Jaw Self Centring Chuck Quick Change Toolpost 6 Holders Coolant Worklight Centres Interlocked Chuck Guard Toolpost Guard Electromagnetic Footbrake Geared or Vari -Speed head Removable Swarf Tray Optional Equipment 4 Jaw Chuck Digital Readout Steadies Faceplates Collet Chuck Collets Taper Turning Attachment 4 Position Bed Stop GAP Bed (standard on 1500 Series lathes)

VIDEO

Catalogs

No catalogs are available for this product.

See all of XYZ Machine Tools‘s catalogs
