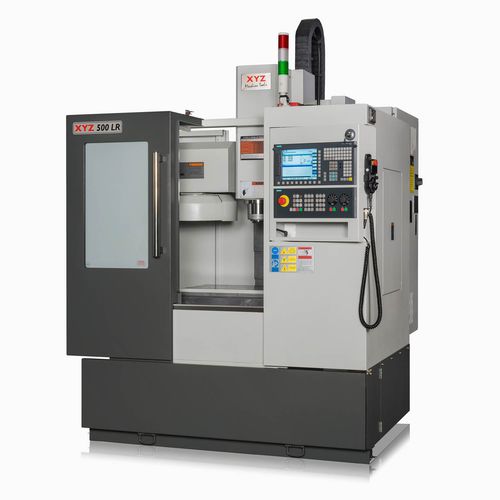

3-axis machining center XYZ 500 LR

verticalwith rotary tableBT 40

The use of linear rails on machining centres has been common for many years, as they allow users to take advantage of improvements in digital motion control and modern cutting tool performance, therefore maximising their competitiveness. Now, with the latest design advances in linear rail technology, XYZ Machine Tools feel that they meet its own stringent performance standards, while still providing a cost advantage and the arrival of the three machine XYZ LR range is the result. The XYZ 500 LR is the smallest machine in XYZ’s new linear rail technology range. As part of this new range of machines, the XYZ 500 LR offers price competitive performance with axis travels of 510 x 400 x 450 mm, 8000 rpm spindle and 20m/min cutting feedrates. The move to linear rail technology comes after recent significant design advances in these rails, which now makes them compatible with XYZ’s quality/performance criteria. With their addition to the XYZ range the LR machines offer a lower cost introduction to VMC ownership. XYZ Machine Tools is happy to demonstrate the capability of these machines at any of its UK showrooms. Standard Equipment -Siemens 828D Control -Linear Bearing Slideways -UK PLC written by Siemens UK -Auto Lubrication -Flood Coolant -High Pressure Coolant wash Down -Programmable Air Blast -Spindle Air Blast -Steel Concertina Guarding -Fully Guarded with Large Single Door Access
