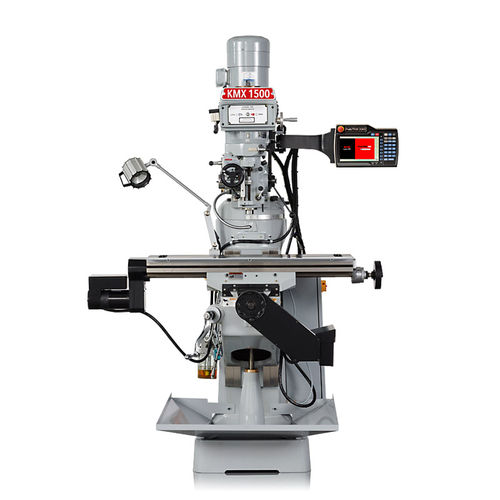

3-axis CNC milling machine XYZ KMX 1500

2-axisverticalcutting

All Turret Mill spindles are driven by AC motors transmitting power through a two speed gear box and variable speed cone pulleys. Precision quill bearings are dynamically balanced and built in a dust free, temperature controlled environment, to ensure smooth and accurate cutting performance. TRAKing® KMX Turret Mills have the TRAKing facility as an option which allows the operator to wind the handwheel and the machine moves through the program at that speed. The faster you wind the faster it machines. Stop or reverse the hand wheel and the machine does the same. Servo’s & Ballscrews High performance servo motors are built into the casting to protect them from the harsh machine shop environment. These servo’s provide smooth consistent power to the precision ground ballscrews to give a perfect milled finish. Manual Operation Mechanical handwheels allow the machinist to ‘feel’ the cutting process when manual machining is preferred, and will automatically disengage when the machine is running under CNC control. Solid Casting Built of solid Meehanite ribbed cast iron with induction hardened and ground slides. Turcite-B coated ways and auto lubrication to all slides and precision ground ballscrews aid accuracy and longevity. Control The latest generation of ProtoTRAK KMX control provides maximum operator productivity particularly on one-off components or small batches. Even an operator with no previous CNC experience will be producing simple or complex parts within hours. Standard Equipment -Vari Speed 2 Range Head. -Chrome Slides or Box Ways. -Verify Solid Model Graphics. -Precision Ground Ballscrews. -Coolant. -Work Light.
